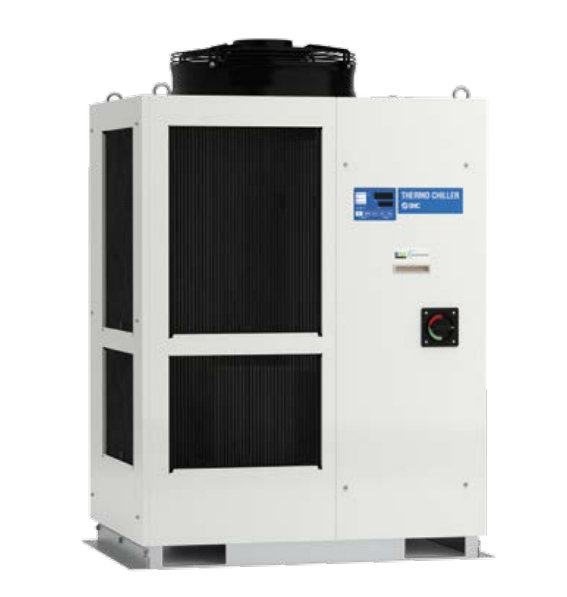

SMC HRSHF200-AN-20-KP Low GWP Refrigerated Thermo-Chiller | 20 kW Air-Cooled R32 Inverter with Caster Kit & High-Pressure Pump
SMC
$25,775.00
The SMC HRSHF200-AN-20-KP is a 20 kW air-cooled refrigerated thermo-chiller with low GWP R32 refrigerant (GWP: 675), caster kit, and high-pressure pump for applications requiring elevated circulating fluid discharge pressure. The high-pressure pump is engineered for long piping runs or equipment with high flow resistance. Triple inverter technology delivers energy-efficient operation. ±0.1°C PID-controlled temperature stability. 3-phase 200230 VAC. Low-noise 70 dB(A) with outdoor installation capability (IPX4). RS-232C/RS-485 serial communication standard. Suited for high-resistance piping configurations, large-scale manufacturing, and demanding industrial process cooling applications.
- Series:
- HRSHF
- Model:
- HRSHF200-AN-20-KP
- Cooling Method:
- Air-Cooled Refrigeration
- Cooling Capacity:
- 20 kW
- Refrigerant:
- R32 (HFC)
- GWP:
- 675
- Control Method Method:
- PID
- Temperature Stability:
- ±0.1°C
- Set Temperature Range:
- 5 to 40°C
- Circulating Fluid:
- Tap Water or 15% Ethylene Glycol
- Circulating Fluid Port Size:
- Rc1
- Power Supply:
- 3-Phase 200 to 230 VAC (50/60 Hz)
- Ambient Temperature Range:
- 5 to 40°C
- Communication:
- RS-232C/RS-485
- Contact I/O:
- 2 Inputs, 3 Outputs
- Inverter:
- Triple (Compressor, Fan, Pump)
- Pump Type:
- High-Pressure Pump (Option P)
- Caster Kit:
- Included (Option K)
- Noise Level:
- 70 dB(A)
- Outdoor Rating:
- IPX4
- Pipe Thread:
- NPT
- Heating Function:
- Yes (Discharged Heat)
- Standards:
- UL, CE, RoHS
- Country of Origin:
- Japan
- Catalog:
- View
