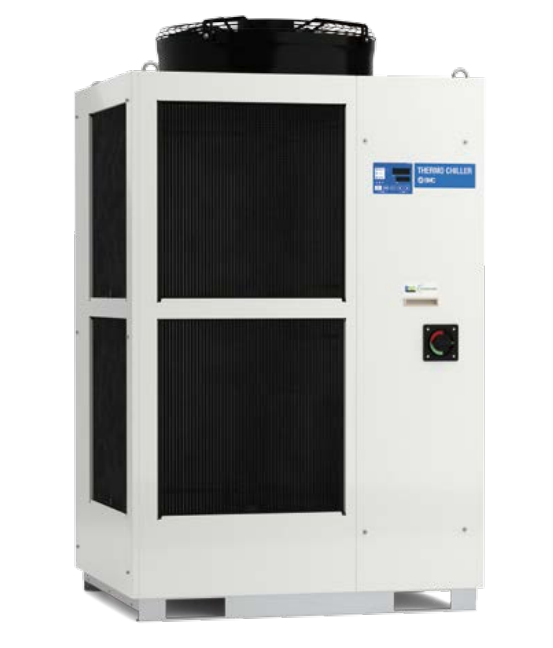

SMC HRSHF250-AN-20-K Low GWP Refrigerated Thermo-Chiller | 25 kW Air-Cooled R32 Inverter with Caster Kit
SMC
$32,612.58
The SMC HRSHF250-AN-20-K is a 25 kW air-cooled refrigerated thermo-chiller with low GWP R32 refrigerant (GWP: 675) equipped with a caster and adjuster-foot kit. This high-capacity model delivers ±0.1°C PID-controlled temperature stability with triple inverter technology for maximum energy efficiency. 3-phase 200230 VAC. Low-noise 70 dB(A) design with outdoor installation capability (IPX4). RS-232C/RS-485 serial communication standard. Designed for large-scale industrial cooling applications requiring 25 kW capacity. Suited for laser cutting systems, large mold temperature control, semiconductor manufacturing support, and heavy-duty process cooling.
- Series:
- HRSHF
- Model:
- HRSHF250-AN-20-K
- Cooling Method:
- Air-Cooled Refrigeration
- Cooling Capacity:
- 25 kW
- Refrigerant:
- R32 (HFC)
- GWP:
- 675
- Control Method:
- PID
- Temperature Stability:
- ±0.1°C
- Set Temperature Range:
- 5 to 40°C
- Circulating Fluid:
- Tap Water or 15% Ethylene Glycol
- Circulating Fluid Port Size:
- Rc1
- Power Supply:
- 3-Phase 200 to 230 VAC (50/60 Hz)
- Ambient Temperature Range:
- 5 to 40°C
- Communication:
- RS-232C/RS-485
- Contact I/O:
- 2 Inputs, 3 Outputs
- Inverter:
- Triple (Compressor, Fan, Pump)
- Caster Kit:
- Included (Option K)
- Noise Level:
- 70 dB(A)
- Outdoor Rating:
- IPX4
- Pipe Thread:
- NPT
- Heating Function:
- Yes (Discharged Heat)
- Standards:
- UL, CE, RoHS
- Country of Origin:
- Japan
