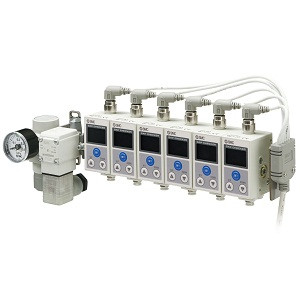

SMC ISA3-GCN-4B-L1 ISA3 Series 3-Color Display Digital Gap Checker
SMC
$1,043.00
The SMC ISA3-GCN-4B-L1 ISA3 Series 3-Color Display Digital Gap Checker is an innovative tool designed to enhance precision and efficiency in your workspace. This advanced gap checker features a newly added centralized lead wire to the manifold, allowing for streamlined operations. With its intuitive 3-color display, you can easily determine if a workpiece is correctly placed at a glance. The device enables you to intuitively find the clearance distance between the detection surface and the workpiece, ensuring accurate measurements every time.
Setting up the device is straightforward, as adjustments can be made while monitoring the displayed values. This gap checker is also energy-efficient, boasting a 60% reduction in air consumption, making it an environmentally friendly choice. Additionally, it offers improved drainage resistance, with durability that is 10 times greater than previous models. Ideal for various industrial applications, the ISA3 Series Digital Gap Checker is a reliable and efficient solution for maintaining optimal performance in your operations.
- Rated Distance Range:
- 0.02 To 0.15 mm
- Porting Specifications:
- Supply Side:Rc1/8
- 6 One-touch Fitting (Rated Distance Range:0.02 To 0.15 mm/0.05 To 0.30 mm) Output Specification:
- NPN 1 Output
- Unit Specifications Of Pressure Value:
- With Unit Conversion Function
- Stations:
- 4 Stations
- Option 1 (Cable):
- Straight
- Option 2 (Bracket):
- With Bracket
- Control Unit:
- With Control Unit (Supply Port:Left Side)
- Regulator:
- With Regulator Round Type Pressure Gauge 0.4MPa MPa Single Notation
- 2 Port Solenoid Valve Rated Voltage (With Control Unit):
- 24 VDC or Without Control Unit
- Made To Order:
- Standard
