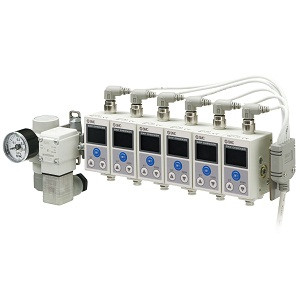

SMC ISA3-GCP-M2NB-L1 ISA3 Series 3-Color Display Digital Gap Checker
SMC
$573.00
The SMC ISA3-GCP-M2NB-L1 ISA3 Series 3-Color Display Digital Gap Checker is an innovative tool designed to enhance precision and efficiency in your workspace. This advanced device features a newly added centralized lead wire to the manifold, allowing for streamlined operations. With its intuitive 3-color display, you can easily determine if a workpiece is correctly placed, ensuring accuracy in your tasks. The gap checker provides a clear visual of the clearance distance between the detection surface and the workpiece, making it simple to adjust settings while monitoring the displayed values. Not only does it offer user-friendly operation, but it also promotes energy efficiency with a remarkable 60% reduction in air consumption. Additionally, the device boasts improved drainage resistance, offering durability that is 10 times greater than previous models. Ideal for various industrial applications, this digital gap checker is a reliable choice for those seeking precision and sustainability.
- Rated Distance Range:
- 0.02 To 0.15 mm
- Porting Specifications:
- Supply Side:Rc1/8
- 6 One-touch Fitting (Rated Distance Range:0.02 To 0.15 mm/0.05 To 0.30 mm) Output Specification:
- PNP 1 Output
- Unit Specifications Of Pressure Value:
- Fixed SI Unit
- Stations:
- 2 Stations
- Option 1 (Cable):
- None
- Option 2 (Bracket):
- With Bracket
- Control Unit:
- With Control Unit (Supply Port:Left Side)
- Regulator:
- With Regulator Round Type Pressure Gauge 0.4MPa MPa Single Notation
- 2 Port Solenoid Valve Rated Voltage (With Control Unit):
- 24 VDC or Without Control Unit
- Made To Order:
- Standard
