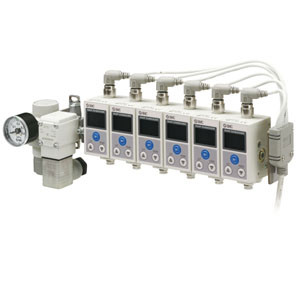

SMC ISA3-HCP-2TB-L1 Digital Gap Checker

SMC ISA3-HCP-2TB-L1 ISA3 Series 3-Color Display Digital Gap Checker

SMC
SKU:
ISA3-HCP-2TB-L1
$590.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

ISA3 Series 3-Color Display Digital Gap Checker

  • Added centralized lead wire to manifold [New];
  • Check at a glance if the workpiece is placed or not;
  • The clearance distance between the detection surface and the workpiece can be found intuitively;
  • Simple Setting: Setting is possible while checking the displayed value;
  • Energy Saving: Air consumption 60% reduction;
  • Improved drainage resistance: 10 times or more
    • Additional Information
    Rated Distance Range:
    0.05 To 0.30 mm
    Porting Specifications:
    Supply Side:Rc1/8
    6 One-touch Fitting (Rated Distance Range:0.02 To 0.15 mm/0.05 To 0.30 mm) Output Specification:
    PNP 1 Output
    Unit Specifications Of Pressure Value:
    With Unit Conversion Function
    Stations:
    2 Stations
    Option 1 (Cable):
    Centralized Lead Wire (With Bracket)
    Option 2 (Bracket):
    With Bracket
    Control Unit:
    With Control Unit (Supply Port:Left Side)
    Regulator:
    With Regulator Round Type Pressure Gauge 0.4MPa MPa Single Notation
    2 Port Solenoid Valve Rated Voltage (With Control Unit):
    24 VDC or Without Control Unit
    Made To Order:
    Standard
