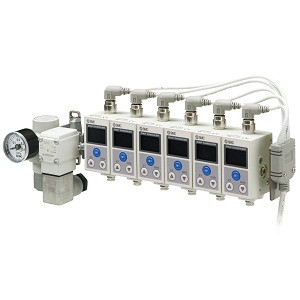

SMC ISA3-HCP-M3B-L1 ISA3 Series 3-Color Display Digital Gap Checker
SMC
$823.00
The SMC ISA3-HCP-M3B-L1 ISA3 Series 3-Color Display Digital Gap Checker is designed for precision and efficiency in industrial settings. This innovative tool features a newly added centralized lead wire to the manifold, enhancing its functionality. With its intuitive 3-color display, users can easily determine if a workpiece is correctly placed, ensuring accuracy in operations. The device allows for simple settings adjustments while monitoring the displayed values, making it user-friendly and efficient. Additionally, it boasts a significant 60% reduction in air consumption, promoting energy savings. The gap checker also offers improved drainage resistance, with durability that is 10 times greater than previous models, ensuring long-lasting performance in demanding environments.
- Rated Distance Range:
- 0.05 To 0.30 mm
- Porting Specifications:
- Supply Side:Rc1/8
- 6 One-touch Fitting (Rated Distance Range:0.02 To 0.15 mm/0.05 To 0.30 mm) Output Specification:
- PNP 1 Output
- Unit Specifications Of Pressure Value:
- Fixed SI Unit
- Stations:
- 3 Stations
- Option 1 (Cable):
- Straight
- Option 2 (Bracket):
- With Bracket
- Control Unit:
- With Control Unit (Supply Port:Left Side)
- Regulator:
- With Regulator Round Type Pressure Gauge 0.4MPa MPa Single Notation
- 2 Port Solenoid Valve Rated Voltage (With Control Unit):
- 24 VDC or Without Control Unit
- Made To Order:
- Standard
