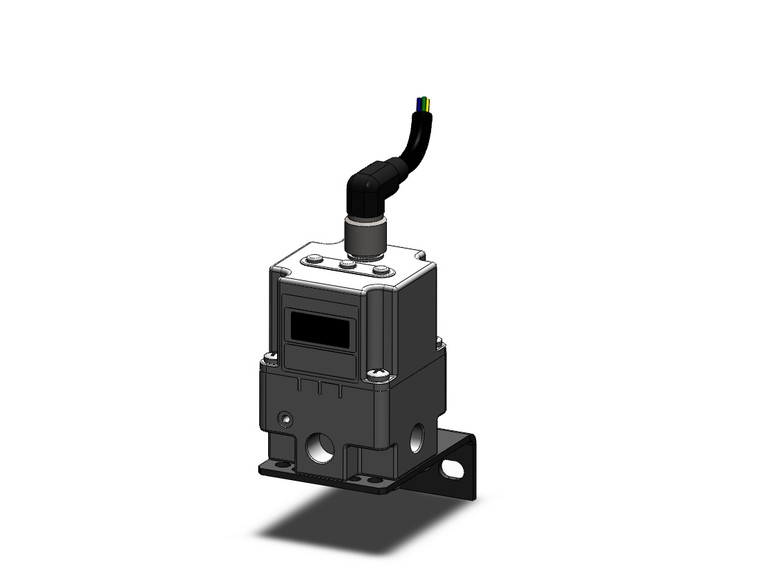

SMC ITV1010-311CL3 ITV1000/2000/3000 Series Electro-pneumatic Regulator
SMC
$297.50
The SMC ITV1010-311CL3 is a high-performance electro-pneumatic regulator from the ITV1000/2000/3000 Series, designed for precise control of air pressure in response to electric signals. It offers stepless control, ensuring smooth and accurate adjustments. With a sensitivity of 0.2 kPa and a linearity of ±1% or less, this regulator guarantees reliable performance. The hysteresis is kept at 0.5% or less, ensuring minimal deviation in pressure control. It supports various communication protocols, including CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C, making it versatile for integration into different systems. Ideal for applications requiring precise pressure regulation, this regulator is a robust solution for industrial automation needs.
- Type:
- 1000 type
- Pressure Range:
- 0.1 MPa
- Power Supply Voltage:
- 24 VDC
- Input Signal:
- Voltage Type 0 To 10 VDC
- Monitor Output:
- Analog Output 1 To 5 VDC
- Thread Type:
- Rc
- Port Size:
- 1/8
- Bracket:
- L-Bracket
- Cable connector:
- Right angle type 3 m
- Pressure display unit:
- bar
- Made To Order:
- Standard
- CE-compliant:
- Standard Type
