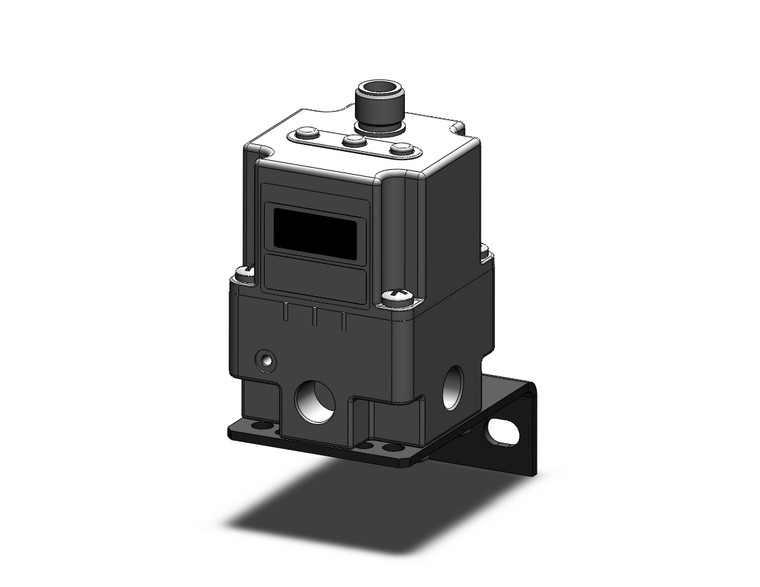

SMC ITV1011-21N1CN4 ITV1000/2000/3000 Series Electro-pneumatic Regulator
SMC
$278.00
The SMC ITV1011-21N1CN4 is a versatile electro-pneumatic regulator from the ITV1000/2000/3000 Series, designed for precise control of air pressure in response to electric signals. It offers stepless control, ensuring smooth and accurate adjustments. With a sensitivity of 0.2 kPa and a linearity of ±1% or less (F.S.), this regulator guarantees reliable performance. The hysteresis is kept at 0.5% or less (F.S.), minimizing any lag in response. It supports various communication protocols, including CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C, making it adaptable to a wide range of industrial applications.
- Type:
- 1000 type
- Pressure Range:
- 0.1 MPa
- Power Supply Voltage:
- 12 To 15 VDC
- Input Signal:
- Voltage Type 0 To 5 VDC
- Monitor Output:
- Analog Output 1 To 5 VDC
- Thread Type:
- NPT
- Port Size:
- 1/8
- Bracket:
- L-Bracket
- Cable connector:
- Without Cable Connector
- Pressure display unit:
- psi
- Made To Order:
- Standard
- CE-compliant:
- Standard Type
