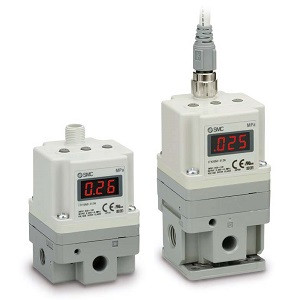

SMC ITV1030-011N-X26 ITV1000/2000 Series Electro-pneumatic Regulator Manifold Type Single Unit
SMC
$301.85
The SMC ITV1030-011N-X26 is a high-performance electro-pneumatic regulator designed for precise control of air pressure in manifold type single unit applications. This unit is part of the ITV1000/2000 Series, known for its stepless control capabilities, allowing for seamless adjustment of air pressure in direct response to electric signals. With a sensitivity of 0.2 kPa and a linearity of ±1% or less (F.S.), this regulator ensures accurate and reliable performance. The hysteresis is maintained at 0.5% or less (F.S.), providing consistent output. It supports various communication protocols including CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C, making it versatile for integration into different systems. Ideal for applications requiring precise pneumatic control, the SMC ITV1030-011N-X26 is engineered to deliver exceptional performance and reliability.
- Type:
- 1000 type
- Pressure Range:
- 0.5 MPa
- Power Supply Voltage:
- 24 VDC
- Input Signal:
- Current Type 4 To 20 Ma DC (Sink Type)
- Monitor Output:
- Analog Output 1 To 5 VDC
- Port Size:
- 1/8
- Cable connector:
- Without Cable Connector
- Pressure display unit:
- MPa
- Made To Order:
- For Manifold
