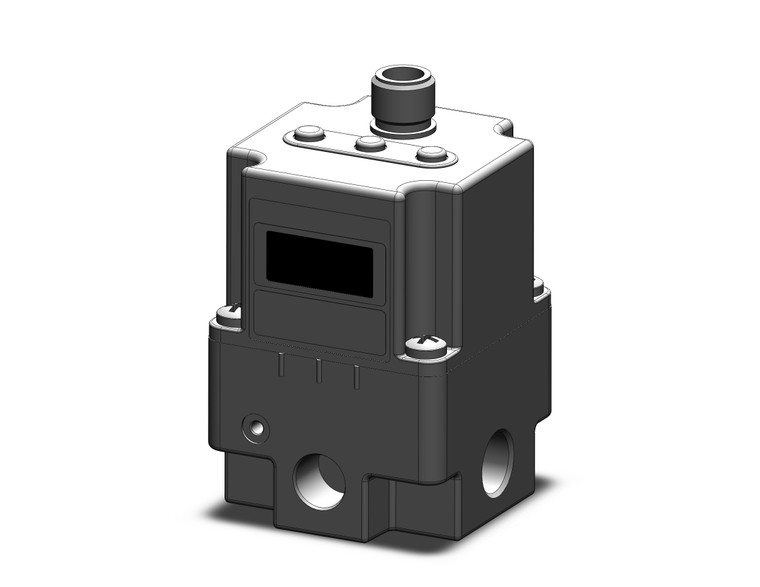

SMC ITV1030-01F2N3 ITV1000/2000/3000 Series Electro-pneumatic Regulator
SMC
$274.70
The SMC ITV1030-01F2N3 is part of the ITV1000/2000/3000 Series Electro-pneumatic Regulators, designed for precise control of air pressure in response to electric signals. This regulator offers stepless control, ensuring smooth and accurate adjustments. It boasts a sensitivity of 0.2 kPa for the 100 kPa specification, ensuring high precision in applications. The device maintains a linearity of ±1% or less (F.S.), and a hysteresis of 0.5% or less (F.S.), providing reliable performance. For seamless integration into various systems, it supports multiple communication protocols, including CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C. Ideal for applications requiring precise pressure control, this regulator is a versatile and efficient solution.
- Type:
- 1000 type
- Pressure Range:
- 0.5 MPa
- Power Supply Voltage:
- 24 VDC
- Input Signal:
- Current Type 4 To 20 Ma DC (Sink Type)
- Monitor Output:
- Analog Output 1 To 5 VDC
- Thread Type:
- G
- Port Size:
- 1/4
- Bracket:
- Without Bracket
- Cable connector:
- Without Cable Connector
- Pressure display unit:
- bar
- Made To Order:
- Standard
- CE-compliant:
- Standard Type
