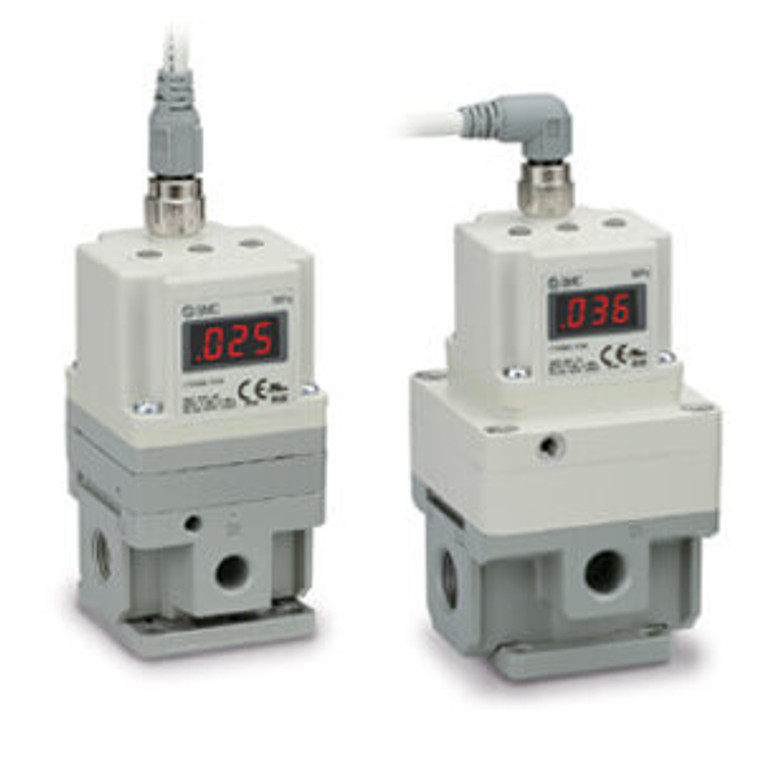

SMC ITV1050-03F2BN ITV1000/2000/3000 Series Electro-pneumatic Regulator
SMC
$278.00
The SMC ITV1050-03F2BN is part of the ITV1000/2000/3000 Series Electro-pneumatic Regulators, designed for precise control of air pressure in response to electric signals. This advanced regulator offers stepless control, ensuring smooth and accurate adjustments. With a sensitivity of 0.2 kPa and a linearity of ±1% or less (F.S.), it guarantees reliable performance. The hysteresis is maintained at 0.5% or less (F.S.), providing consistent output. For seamless integration into various systems, it supports multiple communication protocols, including CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C. Ideal for applications requiring high precision and adaptability, this regulator is a versatile solution for modern pneumatic systems.
- Type:
- 1000 type
- Pressure Range:
- 0.9 MPa
- Power Supply Voltage:
- 24 VDC
- Input Signal:
- Current Type 4 To 20 Ma DC (Sink Type)
- Monitor Output:
- Switch Output/PNP Output
- Thread Type:
- G
- Port Size:
- 1/4
- Bracket:
- Flat Bracket
- Cable connector:
- Without Cable Connector
- Pressure display unit:
- MPa
- Made To Order:
- Standard
- CE-compliant:
- Standard Type
