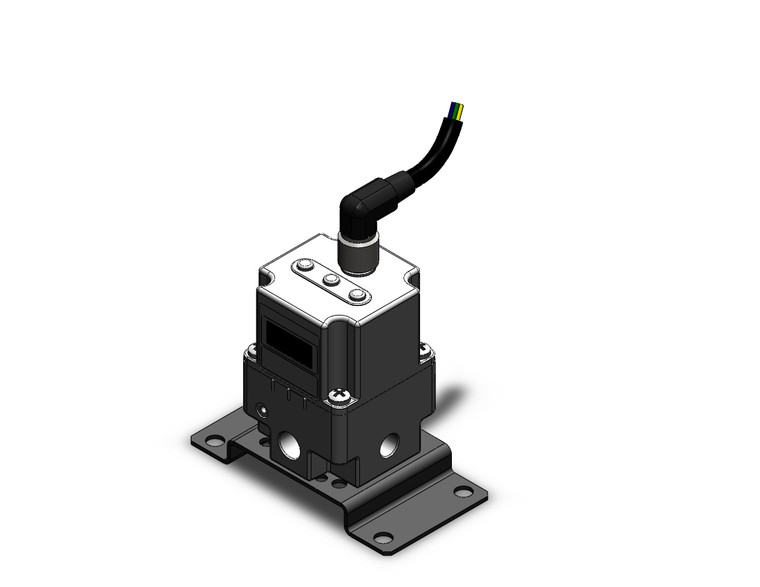

SMC ITV1050-33F1BL3 ITV1000/2000/3000 Series Electro-pneumatic Regulator
SMC
$297.50
The SMC ITV1050-33F1BL3 is part of the ITV1000/2000/3000 Series Electro-pneumatic Regulators, designed for precise control of air pressure in response to electric signals. This regulator offers stepless control, ensuring smooth and accurate adjustments. It boasts a sensitivity of 0.2 kPa for the 100 kPa specification, ensuring high precision in applications. The linearity is maintained at ±1% or less of full scale, while the hysteresis is kept at 0.5% or less, ensuring reliable performance. For seamless integration into various systems, it supports multiple communication protocols, including CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C. Ideal for applications requiring precise pneumatic control, this regulator is a versatile and reliable choice.
- Type:
- 1000 type
- Pressure Range:
- 0.9 MPa
- Power Supply Voltage:
- 24 VDC
- Input Signal:
- Voltage Type 0 To 10 VDC
- Monitor Output:
- Switch Output/PNP Output
- Thread Type:
- G
- Port Size:
- 1/8
- Bracket:
- Flat Bracket
- Cable connector:
- Right angle type 3 m
- Pressure display unit:
- bar
- Made To Order:
- Standard
- CE-compliant:
- Standard Type
