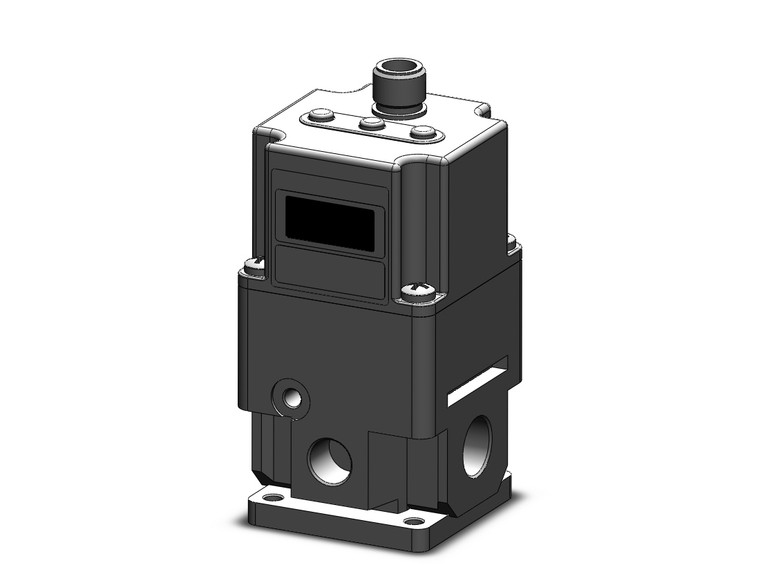

SMC ITV2011-04N2N4 ITV1000/2000/3000 Series Electro-pneumatic Regulator
SMC
$387.65
The SMC ITV2011-04N2N4 is a part of the ITV1000/2000/3000 Series Electro-pneumatic Regulators, designed for precise and stepless control of air pressure in response to electric signals. This advanced regulator boasts a sensitivity of 0.2 kPa, ensuring accurate pressure adjustments. With a linearity of ±1% or less (Full Scale) and a hysteresis of 0.5% or less (Full Scale), it guarantees reliable performance. The regulator supports various communication protocols, including CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C, making it versatile for integration into different systems. Ideal for applications requiring precise pressure control, this regulator is a robust solution for enhancing operational efficiency.
- Type:
- 2000 type
- Pressure Range:
- 0.1 MPa
- Power Supply Voltage:
- 12 To 15 VDC
- Input Signal:
- Current Type 4 To 20 Ma DC (Sink Type)
- Monitor Output:
- Analog Output 4 To 20 mA DC (Sink Type)
- Thread Type:
- NPT
- Port Size:
- 1/4
- Bracket:
- Without Bracket
- Cable connector:
- Without Cable Connector
- Pressure display unit:
- psi
- Made To Order:
- Standard
- CE-compliant:
- Standard Type
