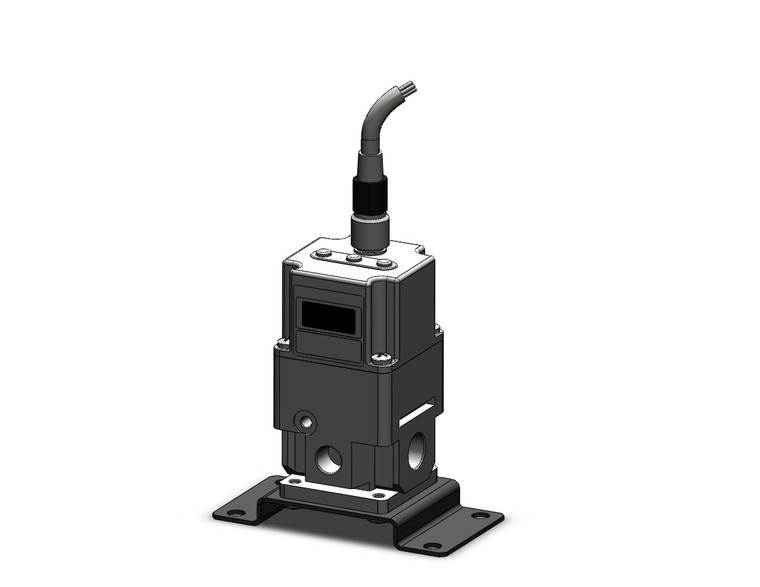

SMC ITV2030-04N2BS ITV1000/2000/3000 Series Electro-pneumatic Regulator
SMC
$410.45
The SMC ITV2030-04N2BS is part of the ITV1000/2000/3000 Series Electro-pneumatic Regulators, designed for precise control of air pressure in response to electric signals. This regulator offers stepless control, ensuring smooth and accurate adjustments. With a sensitivity of 0.2 kPa and a linearity of ±1% or less (F.S.), it guarantees reliable performance. The hysteresis is kept at 0.5% or less (F.S.), minimizing any lag in response. For seamless integration into various systems, it supports multiple communication protocols including CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C. Ideal for applications requiring high precision and adaptability.
- Type:
- 2000 type
- Pressure Range:
- 0.5 MPa
- Power Supply Voltage:
- 24 VDC
- Input Signal:
- Current Type 4 To 20 Ma DC (Sink Type)
- Monitor Output:
- Analog Output 4 To 20 mA DC (Sink Type)
- Thread Type:
- NPT
- Port Size:
- 1/4
- Bracket:
- Flat Bracket
- Cable connector:
- Straight Type 3 m
- Pressure display unit:
- MPa
- Made To Order:
- Standard
- CE-compliant:
- Standard Type
