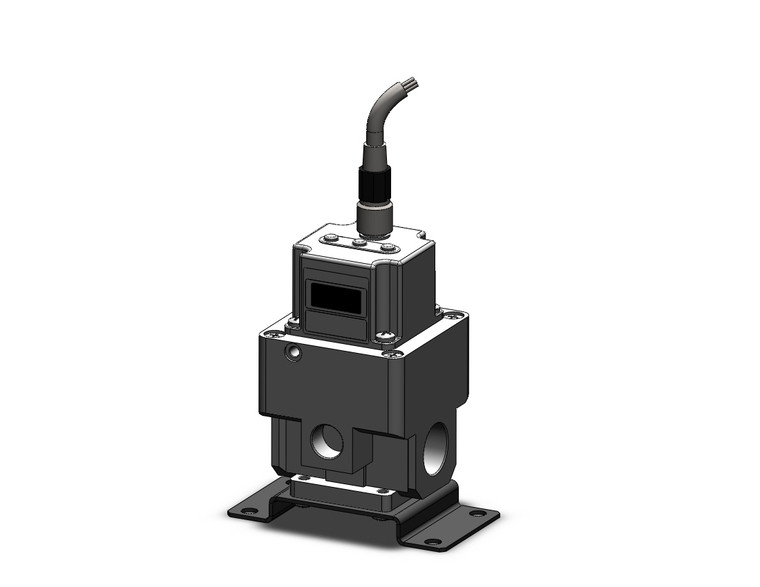

SMC ITV3010-31N4BS4 3000 Size Electro-Pneumatic Regulator

SMC ITV3010-31N4BS4 ITV1000/2000/3000 Series Electro-pneumatic Regulator

SMC
SKU:
ITV3010-31N4BS4
Availability:
Contact us to confirm availability and lead times.
$407.05
Condition:
New
Current Stock:
Description

ITV1000/2000/3000 Series Electro-pneumatic Regulator

  • Stepless control of air pressure in proportion to electric signals;
  • Sensitivity: 0.2 kPa (100 kPa specification);
  • Linearity: ±1% or less (F.S.);
  • Hysteresis: 0.5% or less (F.S.);
  • Communication: CC-Link, DeviceNetTM, PROFIBUS DP, RS-232C
    • Additional Information
    Type:
    3000 type
    Pressure Range:
    0.1 MPa
    Power Supply Voltage:
    24 VDC
    Input Signal:
    Voltage Type 0 To 10 VDC
    Monitor Output:
    Analog Output 1 To 5 VDC
    Thread Type:
    NPT
    Port Size:
    1/2
    Bracket:
    Flat Bracket
    Cable connector:
    Straight Type 3 m
    Pressure display unit:
    psi
    Made To Order:
    Standard
    CE-compliant:
    Standard Type
