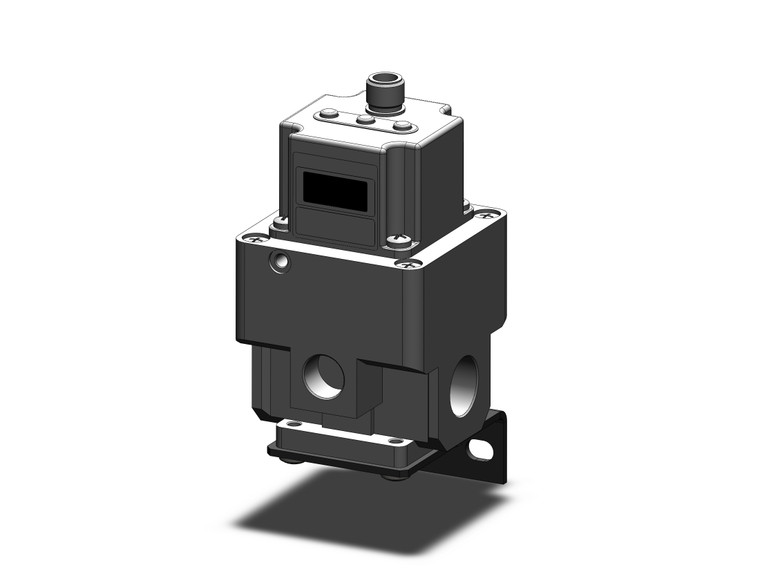

SMC ITV3050-04F4CN4 ITV1000/2000/3000 Series Electro-pneumatic Regulator
SMC
$413.00
The SMC ITV3050-04F4CN4 is a high-performance electro-pneumatic regulator from the ITV1000/2000/3000 Series, designed for precise control of air pressure in response to electric signals. This advanced regulator offers stepless control, ensuring smooth and accurate pressure adjustments. With a sensitivity of 0.2 kPa (for the 100 kPa specification), it provides exceptional precision. The regulator boasts a linearity of ±1% or less (Full Scale) and a hysteresis of 0.5% or less (Full Scale), ensuring reliable and consistent performance. It supports various communication protocols, including CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C, making it versatile and easy to integrate into different systems. Ideal for applications requiring precise pressure control, the SMC ITV3050-04F4CN4 is a dependable choice for enhancing operational efficiency.
- Type:
- 3000 type
- Pressure Range:
- 0.9 MPa
- Power Supply Voltage:
- 24 VDC
- Input Signal:
- Current Type 4 To 20 Ma DC (Sink Type)
- Monitor Output:
- Analog Output 4 To 20 mA DC (Sink Type)
- Thread Type:
- G
- Port Size:
- 1/2
- Bracket:
- L-Bracket
- Cable connector:
- Without Cable Connector
- Pressure display unit:
- psi
- Made To Order:
- Standard
- CE-compliant:
- Standard Type
