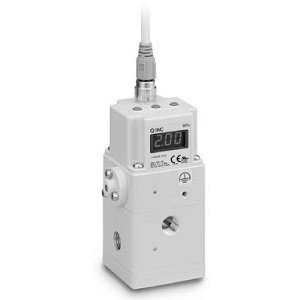

SMC ITVH2020-04N3N4 ITVH2000 Series 3.0 MPa Maximum Supply Pressure High Pressure Electro-pneumatic Regulator
SMC
$1,233.00
The SMC ITVH2020-04N3N4 is a high-performance electro-pneumatic regulator from the ITVH2000 Series, designed to handle a maximum supply pressure of 3.0 MPa. This advanced regulator offers a set pressure range from 0.2 to 2.0 MPa, allowing for stepless control of pressure below 2.0 MPa. It ensures exceptional stability with a deviation of ±1% F.S. or less, making it ideal for precise applications. With a power consumption of 3W or less, it is energy-efficient while delivering a maximum flow rate of 3,000 L/min (ANR), making it suitable for high-demand environments.
- Set Pressure Range:
- 0.2 To 2.0 MPa
- Power Supply Voltage:
- 24 VDC
- Input Signal:
- Current Type 4 To 20 mA DC
- Monitor Output:
- Analog Output 4 To 20 mA DC(Sink type)
- Pipe Thread Type:
- NPT
- Port Size:
- 3/8
- Accessory(Bracket):
- Without Bracket
- Cable Connector Type:
- Without Cable Connector
- Pressure Display Unit:
- psi
