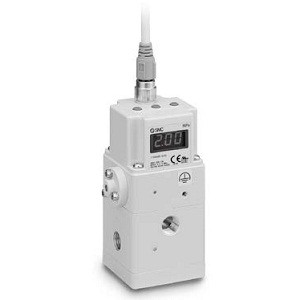

SMC ITVH2020-313CL4 ITVH2000 Series 3.0 MPa Maximum Supply Pressure High Pressure Electro-pneumatic Regulator

SMC ITVH2020-313CL4 ITVH2000 Series 3.0 MPa Maximum Supply Pressure High Pressure Electro-pneumatic Regulator

SMC
SKU:
ITVH2020-313CL4
Availability:
Factory Stock
$1,225.65
Condition:
New
Current Stock:
Description

ITVH2000 Series 3.0 MPa Maximum Supply Pressure High Pressure Electro-pneumatic Regulator

  • Maximum supply pressur:3.0MPa;
  • Set pressure range:0.2?2.0MPa; Stepless control for pressure below 2.0MPa;
  • Stability:±1%F.S. or less;
  • Power consumption:3W or less;
  • Maximum flow rate:3,000L/min(ANR)
    • Additional Information
    Set Pressure Range:
    0.2 To 2.0 MPa
    Power Supply Voltage:
    24 VDC
    Input Signal:
    Voltage Type 0 To 10 VDC
    Monitor Output:
    Analog Output 1 To 5 VDC
    Pipe Thread Type:
    Rc
    Port Size:
    3/8
    Accessory(Bracket):
    L-bracket
    Cable Connector Type:
    Right angle type 3 m
    Pressure Display Unit:
    psi
