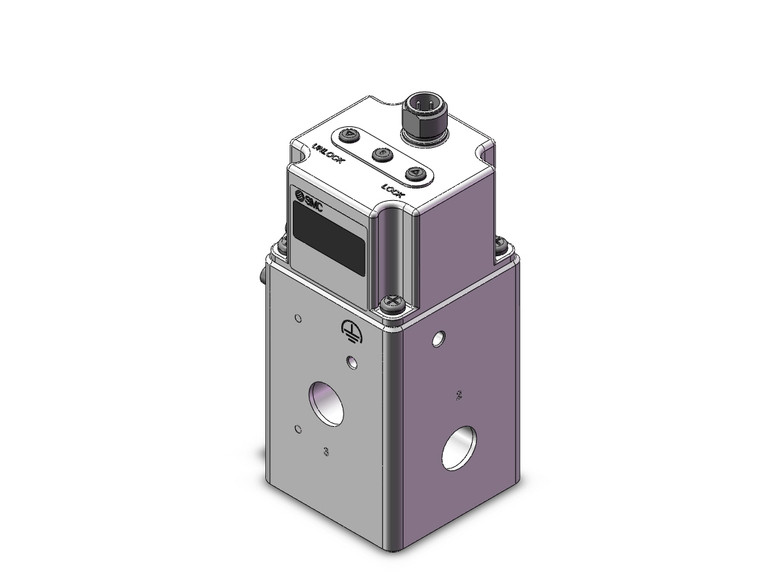

SMC ITVH2020-31N2N Hi Pressure Electro-Pneumatic Regulator

SMC ITVH2020-31N2N ITVH2000 Series 3.0 MPa Maximum Supply Pressure High Pressure Electro-pneumatic Regulator

SMC
SKU:
ITVH2020-31N2N
Availability:
Contact us to confirm availability and lead times.
$1,200.00
Condition:
New
Current Stock:
Description
The SMC ITVH2020-31N2N is a high-performance electro-pneumatic regulator from the ITVH2000 Series, designed to handle a maximum supply pressure of 3.0 MPa. This advanced regulator offers a set pressure range from 0.2 to 2.0 MPa, allowing for stepless control of pressure below 2.0 MPa. It ensures exceptional stability with a precision of ±1% F.S. or less, making it ideal for applications requiring consistent and reliable pressure regulation. With a power consumption of 3W or less, it is energy-efficient while delivering a maximum flow rate of 3,000 L/min (ANR), making it suitable for high-demand environments.
Additional Information
Set Pressure Range:
0.2 To 2.0 MPa
Power Supply Voltage:
24 VDC
Input Signal:
Voltage Type 0 To 10 VDC
Monitor Output:
Analog Output 1 To 5 VDC
Pipe Thread Type:
NPT
Port Size:
1/4
Accessory(Bracket):
Without Bracket
Cable Connector Type:
Without Cable Connector
Pressure Display Unit:
MPa
