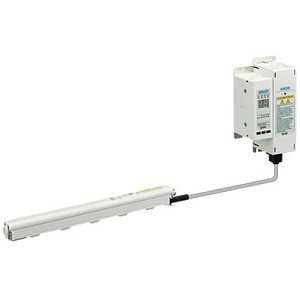

SMC IZT40-124V37HR-3BU-X10 IZT40 Series Separate Controller Bar Type Ionizer Standard Type

SMC IZT40-124V37HR-3BU-X10 IZT40 Series Separate Controller Bar Type Ionizer Standard Type

SMC
SKU:
IZT40-124V37HR-3BU-X10
Availability:
Factory Stock
$1,795.00
Condition:
New
Current Stock:
Description

IZT40 Series Separate Controller Bar Type Ionizer Standard Type

  • Nozzle type/IZT43 Series added. [New];
  • The controller and high-voltage power supply module can be mounted separately;
  • Space saving: Height 37 mm x Width 30 mm (Bar type); Thickness 16 mm x Width 53 mm x Height 32 mm (Nozzle type);
  • One controller can control a maximum of 4 ionizers;
  • Potential amplitude: 25 V or less;
  • Rapid neutralization of static electricity: Max. speed of 0.1 s;
  • 3 types of emitter cartridges; High speed static neutralization cartridge; Energy saving static neutralization cartridge; Energy saving high-efficiency cartridge;
  • Static neutralization is possible even when air is not being supplied
    • Additional Information
    Model:
    Standard Type
    Bar Length:
    1240 mm
    Electrode Cartridge Type/Electrode Needle Material:
    Energy Saving Highefficiency Cartridge,Emitter Material:Tungsten
    High-voltage Cable Length:
    3 m
    One-touch Fitting:
    ?1/4" Straight
    Plug Position:
    Opposite Side Of The High-voltage Cable
    Power Supply Cable Length:
    3 m
    Bar Bracket:
    With Bracket 1
    DIN Rail Mounting Bracket For Controller And High-voltage Power Supply Module:
    With DIN Rail Mounting Bracket For Controller,With DIN Rail Mounting Bracket For High-voltage Power Supply Module
    Made To Order:
    Non-Standard Bar Length
