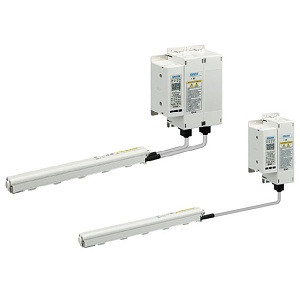

SMC IZT42-64D36H-3BU IZT41/42 Series Separate Controller Bar Type Ionizer AC Type/Dual AC Type
SMC
$2,145.00
The SMC IZT42-64D36H-3BU is a versatile ionizer from the IZT41/42 Series, designed for efficient static electricity neutralization. This model features a separate controller and high-voltage power supply module, allowing for flexible installation and space-saving benefits. The bar type ionizer boasts compact dimensions with a height of 37 mm and width of 30 mm, while the nozzle type measures 16 mm in thickness, 53 mm in width, and 32 mm in height. Capable of controlling up to four ionizers with a single controller, it ensures rapid static neutralization with a maximum speed of 0.1 seconds and maintains a potential amplitude of 25 V or less. The ionizer offers three types of emitter cartridges, including a high-speed static neutralization cartridge, an energy-saving static neutralization cartridge, and an energy-saving high-efficiency cartridge. Notably, static neutralization can be achieved even without air supply, making it a highly efficient solution for various industrial applications.
- Model:
- Dual AC Type
- Bar Length:
- 640 mm
- Electrode Cartridge Type/Electrode Needle Material:
- High Speed Static Neutralization Cartridge?Emitter Material:Tungsten
- High-voltage Cable Length:
- 3 m
- One-touch Fitting:
- ?6 Straight
- Plug Position:
- Without Plug
- Input/Output Specifications:
- NPN Input/Output
- Power Supply Cable Length:
- 3 m
- Bar Bracket:
- With Bracket 1
- DIN Rail Mounting Bracket For Controller And High-voltage Power Supply Module:
- With DIN Rail Mounting Bracket For Controller,With DIN Rail Mounting Bracket For High-voltage Power Supply Module
- Made To Order:
- Standard
