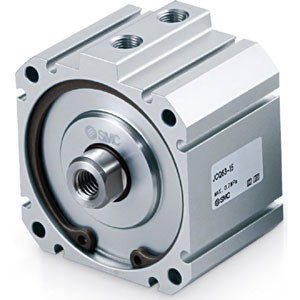

SMC JCDQ25-40 JCQ Series Compact Cylinder Double Acting Single Rod
SMC
$56.00
The SMC JCDQ25-40 JCQ Series Compact Cylinder is engineered for precision and efficiency in demanding industrial applications. This double-acting, single rod cylinder is a part of the innovative JCQ Series, designed to optimize space and performance.
Key features include the addition of an axial foot type and a flange type, expanding its versatility for various mounting configurations. The compact design has been meticulously refined, achieving an overall length reduction of 6.5 mm, a width reduction of 6 mm, and a height reduction of 4 mm. This results in a significant weight reduction of up to 46%, from 382 g to 204 g, and a volume reduction of up to 40%, making it ideal for applications where space and weight are critical constraints.
The JCDQ25-40 model is equipped with an auto switch, enhancing its functionality and integration into automated systems. This feature ensures precise control and monitoring, essential for maintaining high productivity and reliability in manufacturing processes.
Engineered for durability and performance, the SMC JCDQ25-40 is the optimal choice for engineers seeking a compact, lightweight, and efficient cylinder solution. Its advanced design and technical specifications make it a superior component for modern industrial environments.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting:
- Through-hole(Standard)
- Bore Size:
- Bore Size 25 mm
- Port Thread Type:
- M Thread ( 12~ 40),Rc ( 50~ 100)
- Cylinder Stroke:
- Standard Stroke 40 mm
- Mounting Bolt:
- None
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
