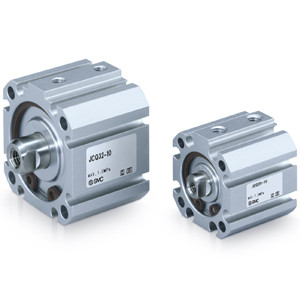

SMC JCDQ40-30 JCQ Series Compact Cylinder Double Acting Single Rod
SMC
$66.25
The SMC JCDQ40-30 JCQ Series Compact Cylinder is engineered for precision and efficiency in demanding industrial applications. This double-acting, single rod cylinder is a part of the innovative JCQ Series, designed to optimize space and performance.
Key features include the addition of an axial foot type and a flange type, expanding its versatility for various mounting configurations. The compact design achieves a significant reduction in dimensions, with an overall length shortened by 6.5 mm, width by 6 mm, and height by 4 mm, making it ideal for applications where space is at a premium.
Engineered for lightweight performance, the JCDQ40-30 is up to 46% lighter, reducing from 382 g to 204 g, which contributes to enhanced system efficiency and reduced load on supporting structures. The volume is also reduced by up to 40%, further optimizing the cylinder for compact installations.
For enhanced functionality, the JCDQ Series includes an auto switch feature, providing precise control and automation capabilities. This makes it an excellent choice for engineers and manufacturing professionals seeking reliable and efficient pneumatic solutions.
Optimize your industrial processes with the SMC JCDQ40-30, where compact design meets robust performance.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting:
- Through-hole(Standard)
- Bore Size:
- Bore Size 40 mm
- Port Thread Type:
- M Thread ( 12~ 40),Rc ( 50~ 100)
- Cylinder Stroke:
- Standard Stroke 30 mm
- Mounting Bolt:
- None
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
