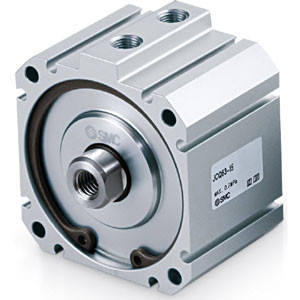

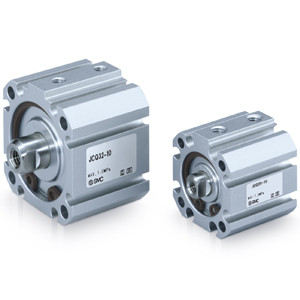

SMC JCQ Series Compact Cylinder Double Acting Single Rod JCDQ50TN-15
SMC
$74.50
The SMC JCDQ50TN-15 JCQ Series Compact Cylinder is engineered for precision and efficiency, making it an ideal choice for engineers and manufacturing professionals seeking reliable pneumatic solutions. This double-acting, single rod cylinder is part of the innovative JCQ Series, designed to optimize space and performance in industrial applications.
Key features include the addition of axial foot and flange types, accommodating a range of mounting configurations for enhanced versatility. The compact design boasts a significant reduction in dimensions, with an overall length shortened by 6.5 mm, width by 6 mm, and height by 4 mm, facilitating integration into tight spaces without compromising functionality.
Engineered for lightweight performance, the JCDQ50TN-15 achieves a remarkable weight reduction of up to 46%, from 382 g to 204 g, contributing to improved system efficiency and reduced load on supporting structures. Additionally, the cylinder's volume is minimized by up to 40%, further enhancing its compact profile.
For added convenience, the JCDQ Series includes an auto switch feature, ensuring seamless operation and monitoring. This compact cylinder is an exemplary choice for applications requiring precise control and space-saving solutions, making it a valuable asset in any engineering or manufacturing setting.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting:
- Through-hole(Standard)
- Bore Size:
- Bore Size 50 mm
- Port Thread Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 15 mm
- Mounting Bolt:
- None
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
