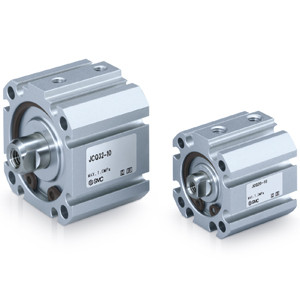

SMC JCDQ50TN-25 JCQ Series Compact Cylinder Double Acting Single Rod
SMC
$79.50
The SMC JCDQ50TN-25 JCQ Series Compact Cylinder is engineered for precision and efficiency in demanding industrial applications. This double-acting, single rod cylinder is a part of the innovative JCQ Series, designed to optimize space and performance.
Key features include the addition of axial foot and flange types, accommodating a range of installation requirements from 32 to 100 mm. The cylinder's compact design boasts a significant reduction in dimensions, with an overall length shortened by 6.5 mm, width by 6 mm, and height by 4 mm, making it ideal for applications where space is at a premium.
Engineered for lightweight performance, the JCDQ50TN-25 is up to 46% lighter, reducing from 382 g to 204 g, which contributes to enhanced system efficiency and ease of handling. The volume is also reduced by up to 40%, ensuring a streamlined integration into existing systems.
For enhanced functionality, the cylinder is equipped with an auto switch, part of the JCDQ Series, providing reliable and precise control. This feature is particularly beneficial for automated systems requiring consistent and repeatable performance.
The SMC JCDQ50TN-25 is a robust solution for engineers and manufacturing professionals seeking a compact, lightweight, and efficient cylinder that does not compromise on performance. Its advanced design and features make it a superior choice for modern industrial applications.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting:
- Through-hole(Standard)
- Bore Size:
- Bore Size 50 mm
- Port Thread Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 25 mm
- Mounting Bolt:
- None
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
