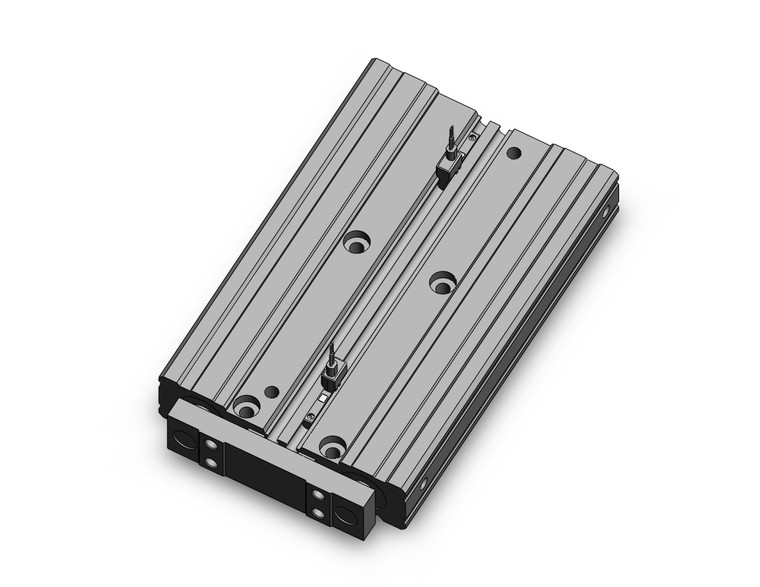

SMC JMGPM20-100-M9BVSAPC compact global cylinder 872 mgp, compact guide cylinder

SMC JMGPM20-100-M9BVSAPC JMGP Series Compact Guide Cylinder

SMC
SKU:
JMGPM20-100-M9BVSAPC
Availability:
Contact us to confirm availability and lead times.
$240.70
Condition:
New
Current Stock:
Description

JMGP Series Compact Guide Cylinder

  • Bore sizes 80, 100 added. [New];
  • Port thread types NPT, G added. [New];
  • Compact/Shortened overall length: 30.5mm, Shortened height: 16 mm;
  • Weight up to 69% lighter (0.32 kg 0.1 kg);
  • 3 mounting options; Top mounting, Bottom mounting, Bottom mounting;
  • Piping is possible in 4 directions.;
  • The solid state auto switch D-M9 is mountable.;
  • Suitable for pushing, lifting or clamping in a transfer line.
    • Additional Information
    Bearing Type:
    Slide Bearing
    Bore Size:
    16mm x 2
    Port Thread Type:
    M Thread ( 12~ 32),Rc ( 40~ 100)
    Cylinder Stroke:
    Standard Stroke 100 mm
    Auto Switch:
    Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 2-wire, Perpendicular, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
    Number Of Auto Switches:
    2 pcs. Or None
