SMC JMHZ2-16D compact parallel gripper jmhz2 gripper

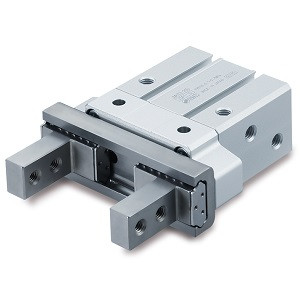

SMC JMHZ2-16D JMHZ2 Series Compact Type Parallel Style Air Gripper

SMC
SKU:
JMHZ2-16D
Availability:
Factory stock: 31
$237.80
Condition:
New
Current Stock:
Description

JMHZ2 Series Compact Type Parallel Style Air Gripper

  • A single acting type has been added [New];
  • Made-to-order options have been added [New];
  • Although downsized, gripping point is maintained (ø20 ø16); Overall length: Max. 21.7 mm shorter (102.7 mm 81 mm); Thickness: Max. 7.6 mm shorter (33.6 mm 26 mm); Weight: Max. 180 g lighter (420 g 240 g);
  • High rigidity and precision are achieved by integrating the guide and finger in one piece;
  • With high-precision linear guide; Repeatability: ±0.01 mm;
  • Linear guide of the higher rigidity and precision is used; Higher rigidity
    • Additional Information
    Number Of Fingers:
    2
    Bore Size:
    16 mm
    Action:
    Double Acting
    Finger Option:
    Basic
    Auto Switch:
    Without Auto Switch (Built-In Magnet)
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
