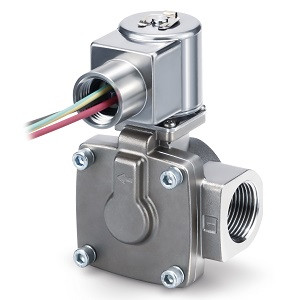

SMC JSXD41-CN04N-5WN-D-B JSXD Series Pilot Operated 2 Port Solenoid Valve

SMC JSXD41-CN04N-5WN-D-B JSXD Series Pilot Operated 2 Port Solenoid Valve

SMC
SKU:
JSXD41-CN04N-5WN-D-B
Availability:
Factory Stock
$111.40
Condition:
New
Current Stock:
Description

JSXD Series Pilot Operated 2 Port Solenoid Valve

  • The pilot operated JSXD series (N.O. specification) has been added. [New];
  • A direct operated vacuum type (JSX V series) has been added. [New];
  • A direct operated steam type (JSX S series) has been added. [New];
  • A direct operated high pressure type (JSX H series) has been added. [New];
  • Improved environmental resistance due to the stainless steel coil cover; ?IP67 enclosure/NEMA4X??; ? IP65 for models with a DIN terminal;
  • Space saving; Compact: Valve volume reduced by 25%?, Lightweight: Weight reduced by 30%?; ? Compared with the existing model;
  • Energy saving; Coil force: 10% increase?, Power consumption: 14% reduction?; ? Compared with the existing model;
  • 360° lead wire insertion and removal is possible;
  • Improved weather resistance in outdoor environments
    • Additional Information
    Size:
    40
    Valve Type:
    N.C.
    Body Material:
    Brass
    Seal Material:
    NBR
    Port Size:
    1/2
    Pipe Thread Type:
    NPT
    Rated Voltage:
    24 VDC
    Electrical Entry:
    M12 Connector/Without Connector Cable(With Surge Voltage Suppressor)
    Oil-free Option:
    Oil-free
    Bracket:
    With Bracket
