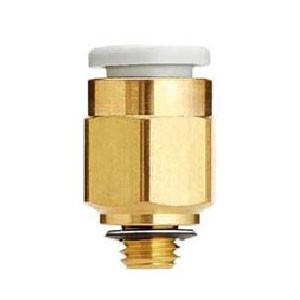

SMC KQ2H06-M5A Fitting, Male Connector Pack of 10

SMC KQ2H06-M5A KQ2H Series Metric Size One-touch Fittings Male Connector

SMC
SKU:
KQ2H06-M5A
Availability:
Factory stock: 12059
$32.20
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

KQ2H Series Metric Size One-touch Fittings Male Connector

  • Possible to use in vacuum to -100 kPa;
  • Body type: Totaled 51 models;
  • Thread material/Surface treatment(Treated or Non-treated): 2 types;
  • Selectable surface treatment: Brass(No plating), Brass + Electroless nickel plated;
  • Applicable Tubing O.D.;?Circular;?Metric??2,?3.2,?4,?6,?8,?10,?12,?16;?Inch??1/8",?5/32",?3/16",?1/4",?5/16",?3/8",?1/2";?Oval;?Metric??3.2,?4,?6;?Inch??1/8",?5/32",?3/16";
  • Connection Thread;?Metric?M3, M5, M6;?R,Rc?1/8,1/4,3/8,1/2;?G?1/8,1/4,3/8,1/2;?NPT?10-32UNF,1/16,1/8,1/4,3/8,1/2;?Uni?1/8,1/4,3/8,1/2;
  • Seal Method;?Sealant/Gasket Seal;?Face Seal;?Gasket Seal?Uni Thread?
    • Additional Information
    Applicable Tubing O.D.:
    ?6 mm
    Connection Thread:
    M5X0.8
    Thread Material/Surface Treatment:
    Brass
    Made To Order:
    Standard
