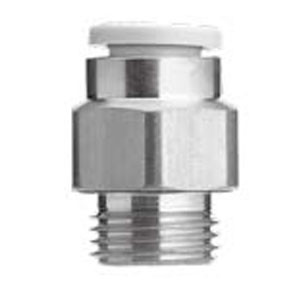

SMC KQ2H12-04A Fitting, Male Connector Pack of 5
SMC
$17.60
KQ2H Series Metric Size One-touch Fittings Male Connector With Sealant
- Possible to use in vacuum to -100 kPa;
- Body type: Totaled 51 models;
- Thread material/Surface treatment(Treated or Non-treated): 2 types;
- Selectable surface treatment: Brass(No plating), Brass + Electroless nickel plated;
- Applicable Tubing O.D.; Circular; Metric 2, 3.2, 4, 6, 8, 10, 12, 16; Inch 1/8", 5/32", 3/16", 1/4", 5/16", 3/8", 1/2"; Oval; Metric 3.2, 4, 6; Inch 1/8", 5/32", 3/16";
- Connection Thread; Metric M3, M5, M6; R,Rc 1/8,1/4,3/8,1/2; G 1/8,1/4,3/8,1/2; NPT 10-32UNF,1/16,1/8,1/4,3/8,1/2; Uni 1/8,1/4,3/8,1/2;
- Seal Method; Sealant/Gasket Seal; Face Seal; Gasket Seal Uni Thread
- Applicable Tubing O.D.:
- 12 mm
- Connection Thread:
- R1/2
- Thread Material/Surface Treatment:
- Brass
- Male Thread Seal Method:
- None
- Made To Order:
- Standard
