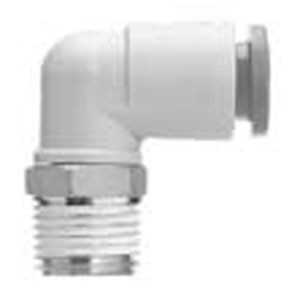

SMC KQ2L13-04NS-X35 Fitting, Male Elbow Pack of 5

SMC KQ2L13-04NS-X35 Fitting, Male Elbow Pack of 5

SMC
SKU:
KQ2L13-04NS-X35
Availability:
Factory stock
$35.75
Condition:
New
Current Stock:
Description

KQ2L Series Inch Size One-touch Fittings Connection Thread

  • Possible to use in vacuum to -100 kPa;
  • Body type: Totaled 51 models;
  • Thread material/Surface treatment(Treated or Non-treated): 2 types;
  • Selectable surface treatment: Brass(No plating), Brass + Electroless nickel plated;
  • Applicable Tubing O.D.;　Circular;　Metric：Φ2,Φ3.2,Φ4,Φ6,Φ8,Φ10,Φ12,Φ16;　Inch：Φ1/8",Φ5/32",Φ3/16",Φ1/4",Φ5/16",Φ3/8",Φ1/2";　Oval;　Metric：Φ3.2,Φ4,Φ6;　Inch：Φ1/8",Φ5/32",Φ3/16";
  • Connection Thread;　Metric：M3, M5, M6;　R,Rc：1/8,1/4,3/8,1/2;　G：1/8,1/4,3/8,1/2;　NPT：10-32UNF,1/16,1/8,1/4,3/8,1/2;　Uni：1/8,1/4,3/8,1/2;
  • Seal Method;　Sealant/Gasket Seal;　Face Seal;　Gasket Seal（Uni Thread）
    • Additional Information
    Applicable Tubing O.D.:
    Φ1/2"
    Bore Size:
    1/2
    Thread Material/Surface Treatment:
    Brass+Electroless Nickel Plated
    Male Thread Seal Method:
    With Thread Sealant
    Made To Order:
    Body Color:Black Release Button Color:Light Gray
