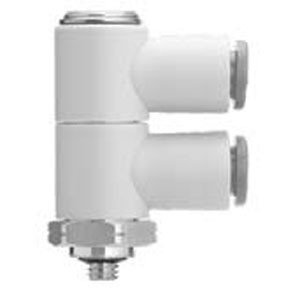

SMC KQ2VD03-32N KQ2VD Series Inch Size One-touch Fittings Double Universal Male Elbow With Gasket Seal Pack of 10
SMC
$204.90
The SMC KQ2VD03-32N KQ2VD Series Inch Size One-touch Fittings Double Universal Male Elbow with Gasket Seal is designed for versatile applications, capable of operating in vacuum conditions down to -100 kPa. This fitting is part of a comprehensive range, featuring a total of 51 models to suit various needs. It offers two types of thread materials and surface treatments, including untreated brass and brass with electroless nickel plating, providing options for different environmental conditions.
The fitting accommodates a wide range of tubing outer diameters, both circular and oval, in metric sizes (2, 3.2, 4, 6, 8, 10, 12, 16) and inch sizes (1/8", 5/32", 3/16", 1/4", 5/16", 3/8", 1/2"). It supports multiple connection threads, including Metric (M3, M5, M6), R, Rc (1/8, 1/4, 3/8, 1/2), G (1/8, 1/4, 3/8, 1/2), NPT (10-32UNF, 1/16, 1/8, 1/4, 3/8, 1/2), and Uni (1/8, 1/4, 3/8, 1/2), ensuring compatibility with various systems.
The seal method includes options for sealant/gasket seal, face seal, and gasket seal with Uni thread, ensuring a secure and reliable connection. This fitting is ideal for applications requiring robust and flexible connections in pneumatic systems.
- Applicable Tubing O.D.:
- ?5/32"
- Thread Material/Surface Treatment:
- Brass+Electroless Nickel Plated
- Made To Order:
- Standard
