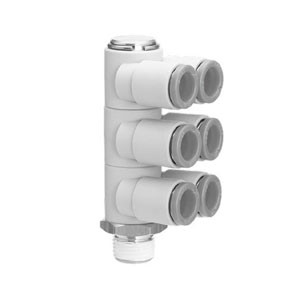

SMC KQ2ZT11-36NS KQ2ZT Series Inch Size One-touch Fittings Triple Universal Male Elbow With Sealant Pack of 10
SMC
$300.30
The SMC KQ2ZT11-36NS is a versatile component from the KQ2ZT Series, designed for efficient and reliable connections in pneumatic systems. This triple universal male elbow fitting is equipped with a sealant, ensuring a secure and leak-proof connection. It is suitable for use in vacuum environments down to -100 kPa, making it ideal for a wide range of applications.
With a total of 51 body models available, this fitting offers flexibility in design and application. The thread material and surface treatment options include untreated brass and brass with electroless nickel plating, allowing for customization based on specific needs.
The fitting accommodates various tubing outer diameters, both circular and oval, in metric and inch sizes. Circular metric sizes range from 2mm to 16mm, while inch sizes include 1/8" to 1/2". Oval metric sizes are available in 3.2mm, 4mm, and 6mm, with inch sizes of 1/8", 5/32", and 3/16".
Connection threads are available in multiple standards, including Metric (M3, M5, M6), R, Rc (1/8, 1/4, 3/8, 1/2), G (1/8, 1/4, 3/8, 1/2), NPT (10-32UNF, 1/16, 1/8, 1/4, 3/8, 1/2), and Uni (1/8, 1/4, 3/8, 1/2). The seal method options include sealant/gasket seal, face seal, and gasket seal for Uni threads, ensuring compatibility with various system requirements.
This fitting is an excellent choice for those seeking a reliable and adaptable solution for their pneumatic connection needs.
- Applicable Tubing O.D.:
- ?3/8"
- Bore Size:
- NPT3/8
- Thread Material/Surface Treatment:
- Brass+Electroless Nickel Plated
- Male Thread Seal Method:
- With Thread Sealant
- Made To Order:
- Standard
