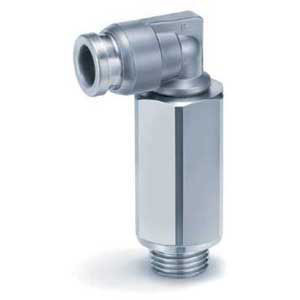

SMC KQB2W16-G04 Fitting, Nickel Plated Brass

(No reviews yet) Write a Review
SKU:
KQB2W16-G04
Condition:
New
Availability:
In stock: 11
Model:
Extended Male Union
Applicable Tube O.D.:
?ÿ16
Connection Thread:
1/2G
$36.55

Description

KQB2, Metal One-touch Fittings, Metric Size (G Threads)

Compact and lightweight, the KQB2 one-touch fitting uses electroless nickel plated brass components as standard specification. Its maximum operating temperature is 150 C. KQB2 fittings can be used with fluid, and in environments having a large temperature change. Configuration variations have been improved to 17 models. Applicable tube sizes are 3.2 to 16 and 1/8 to 1/2 . Series KQB2 is available with M, R, Rc, UNF, NPT or G connection threads.

- Threads: G
- Compact light weight
- Grease-free
- Applicable tube material: FEP, PFA, nylon, soft nylon, polyurethane, polyolefin
- Electroless nickel plated (brass parts)
- This product is not intended for use in potable water systems
-

Series Catalog
