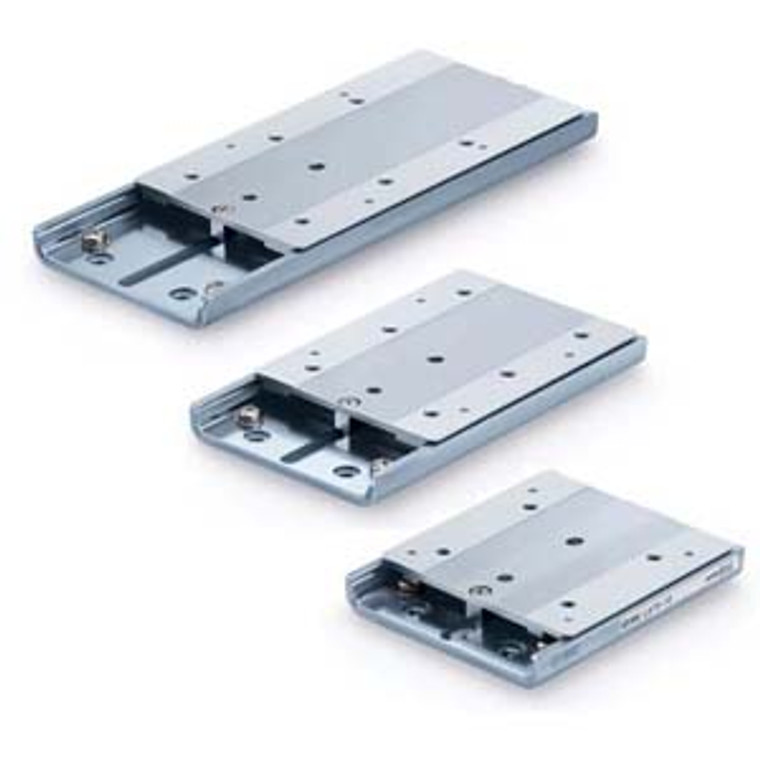

SMC LAT3-10-AP1D LAT3 Series Card Motor
SMC
$950.00
The SMC LAT3-10-AP1D LAT3 Series Card Motor is a compact and efficient solution for your transportation, pushing, and length measurement needs. This innovative product features a miniaturized design, utilizing a linear motor to achieve a thickness of just 9 mm and a weight of 130 g at a 10 mm stroke. With a maximum pushing force of 6 N, it ensures reliable performance in various applications. The LAT3 Series Card Motor offers exceptional precision with a positioning repeatability of ±5 µm and a pushing measurement accuracy of ±10 µm. Additionally, it operates at a maximum frequency of 500 cycles per minute, making it an ideal choice for high-speed operations.
- Sensor Resolution:
- 30?m
- Stroke:
- Stroke 10 mm
- Actuator Cable Length:
- Without Cable
- Controller Type:
- With controller LATCA(PNP)
- I/O Cable Length:
- 1 m
- Controller Mounting:
- DIN Rail Mounting
- I/O Cable Specification Change:
- No Specification Change
