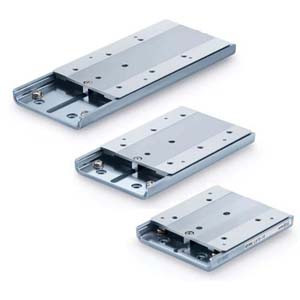

SMC LAT3M-50-5AP5D LAT3 Series Card Motor
SMC
$1,490.00
The SMC LAT3M-50-5AP5D LAT3 Series Card Motor is a compact and efficient solution for your transportation, pushing, and length measurement needs. This innovative linear motor has been miniaturized to a thickness of just 9 mm and weighs only 130 g at a 10 mm stroke, making it ideal for space-constrained applications. It delivers a maximum pushing force of 6 N, ensuring robust performance. With a positioning repeatability of ±5 µm and a pushing measurement accuracy of ±10 µm, this motor guarantees precision in every operation. Additionally, it boasts a maximum operating frequency of 500 cycles per minute, providing high-speed functionality for demanding tasks.
- Sensor Resolution:
- 5?m
- Stroke:
- Stroke 50 mm
- Actuator Cable Length:
- 5 m
- Controller Type:
- With controller LATCA(PNP)
- I/O Cable Length:
- 5 m
- Controller Mounting:
- DIN Rail Mounting
- I/O Cable Specification Change:
- No Specification Change
