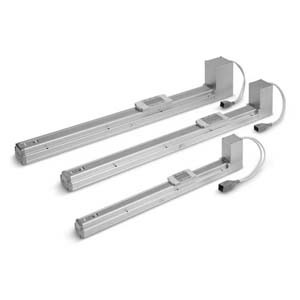

SMC LEFB16T-800 Belt Drive Actuator

(No reviews yet) Write a Review
SKU:
LEFB16T-800
Condition:
New
Availability:
In stock: 2
Size:
16
Motor:
Step Motor (Servo 24 VDC)
Stroke:
800mm
Motor Option:
w/o Lock
Actuator Cable:
Without Cable
Actuator Cable Length:
Without Cable
Controller:
Without Controller
I/O Cable Length:
Without Cable
Communication Plug Connector:
None
Controller Mounting:
Screw
$1,045.00

Description

the lef series slider type electric actuator features a low profile height of 46mm *. the actuators main body can be mounted without removing any exterior components, such as the cover, making installation easy. the standard equipped seal band covers the guide, ball screw and belt, preventing grease and external foreign matter from splashing and entering the lef. there are 2 types of drivers available, ball screw or timing belt. available motors include servo motor ball screw drive or step motor belt drive. when the lef is ordered with the controller, initial data of the actuator is preset in the controller allowing start-up in a short time with the in.easy modein..

  • body size: 16, 25, 32
  • belt drive
  • applicable stroke range: 300, 500, 600, 700, 800, 900, 1000, 1200, 1500, 1800, 2000
  • 2 types of motors: servo motor ball screw drive or step motor belt drive
  • controller mounting: screw or din rail type


AutoCAD File

View AllClose

Related Products

<h2>LEFB Electric Actuator, Slider Type, Belt Drive</h2><p><h3>An LEFB slider, or rodless, type electric actuator features a load mounting platform situated above a belt drive. A flexible seal band permits platform movement while preventing grease and foreign matter from entering the drive. Advantages include shorter overall length than rod types, plus longer strokes and higher speeds than ball screw drives.</h3>- Body sizes: 16, 25, 32<br>- Maximum speed: 2000 mm/s<br>- Maximum stroke: 2000 mm<br>- Positioning repeatability: 0.1 mm<br>- Motor types: high load step motor or high speed servo motor<p><a href="https://content2.smcetech.com/pdf/LEF_1.pdf" target="_blank">Series Catalog</a>
