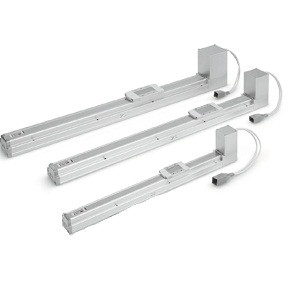

SMC LEFB32T-1200B-S5C618 LEFB Series Electric Actuator/Slider Type Belt Drive Step Motor (Servo 24 VDC) Applicable To The JXC Series

SMC LEFB32T-1200B-S5C618 LEFB Series Electric Actuator/Slider Type Belt Drive Step Motor (Servo 24 VDC) Applicable To The JXC Series

SMC
SKU:
LEFB32T-1200B-S5C618
Availability:
Factory stock
$2,145.00
Condition:
New
Current Stock:
Description

LEFB Series Electric Actuator/Slider Type Belt Drive Step Motor (Servo 24 VDC) Applicable To The JXC Series

Series LEFB Step Motor (Servo/24 VDC) Servo Motor (24 VDC);

  • Max. stroke: 2000 mm;
  • Max. speed: 2000 mm/s;
  • Positioning repeatability: ±0.08 mm;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, LECP6 (Manufacture Discontinued);;Series LEFB AC Servo Motor;
  • Max. speed: 2000mm/s;
  • Max. stroke: 3000mm;
  • Max. acceleration/deceleration: 20000mm/S2;
  • Pulse input type/With internal absolute encoder (For the LECSB/C/S);
  • Positioning repeatability: ±0.06 mm;
  • Compatible drivers: LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY , LECSB-S (Manufacture Discontinued), LECSC-S (Manufacture Discontinued), LECSS-S (Manufacture Discontinued)
