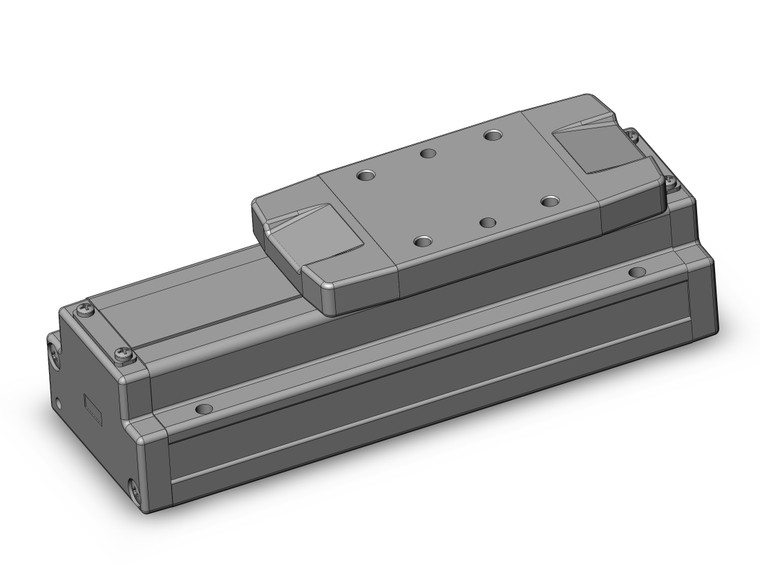

SMC LEFG32-S-550 (11-)LEFG Series Electric Actuator/Slider Type Support Guide
SMC
$425.00
SMC LEFG32-S-550 - LEFG Series Electric Actuator Support Guide, 32mm Size, 550mm Stroke, Ball Screw Drive Compatible
The SMC LEFG32-S-550 delivers passive guided support with LEF-compatible mounting dimensions for simplified multi-axis system design. With a 32mm frame size and 550mm stroke, it is compatible with ball screw drive mounting pitch for multi-axis system configurations.
Key Features & Specifications
- No motor required - passive support guide driven by a paired LEFS or LEFB slider
- Shared outer dimensions with LEF series body for simplified design and assembly integration
- Seal band equipped - prevents grease scattering and entry of external foreign matter
- Multi-axis compatible - configurable into 2-axis and 3-axis gantry systems using LEA mounting kits
- Clean series compatible - general environment rating
- Size: 32mm | Stroke: 550mm | Ball Screw Drive Pitch | Support Guide
Typical Applications
Designed for large-format positioning, panel handling, and multi-axis transfer systems requiring supplemental linear guidance.
Manufactured by SMC Corporation.
- Clean Series:
- General Environment
- Guide Type:
- Support Guide
- Size:
- 32
- Type of Mounting Pitch:
- for Ball Screw Drive
- Stroke:
- Stroke 550 mm
- Grease Application (Seal Band Part):
- With
