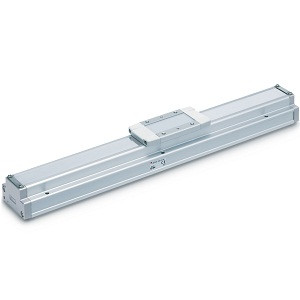

SMC LEFG32-S-800 (11-)LEFG Series Electric Actuator/Slider Type Support Guide
SMC
$475.00
SMC LEFG32-S-800 - LEFG Series Electric Actuator Support Guide, 32mm Size, 800mm Stroke, Ball Screw Drive Compatible
The SMC LEFG32-S-800 enables stable workpiece support across extended strokes, integrating directly with LEF slider actuator configurations. With a 32mm frame size and 800mm stroke, it is compatible with ball screw drive mounting pitch for multi-axis system configurations.
Key Features & Specifications
- No motor required - passive support guide driven by a paired LEFS or LEFB slider
- Shared outer dimensions with LEF series body for simplified design and assembly integration
- Seal band equipped - prevents grease scattering and entry of external foreign matter
- Multi-axis compatible - configurable into 2-axis and 3-axis gantry systems using LEA mounting kits
- Clean series compatible - general environment rating
- Size: 32mm | Stroke: 800mm | Ball Screw Drive Pitch | Support Guide
Typical Applications
Designed for 3-axis cantilever and gantry portal configurations where a driving slider alone cannot adequately support the payload.
Manufactured by SMC Corporation.
- Clean Series:
- General Environment
- Guide Type:
- Support Guide
- Size:
- 32
- Type of Mounting Pitch:
- for Ball Screw Drive
- Stroke:
- Stroke 800 mm
- Grease Application (Seal Band Part):
- With
