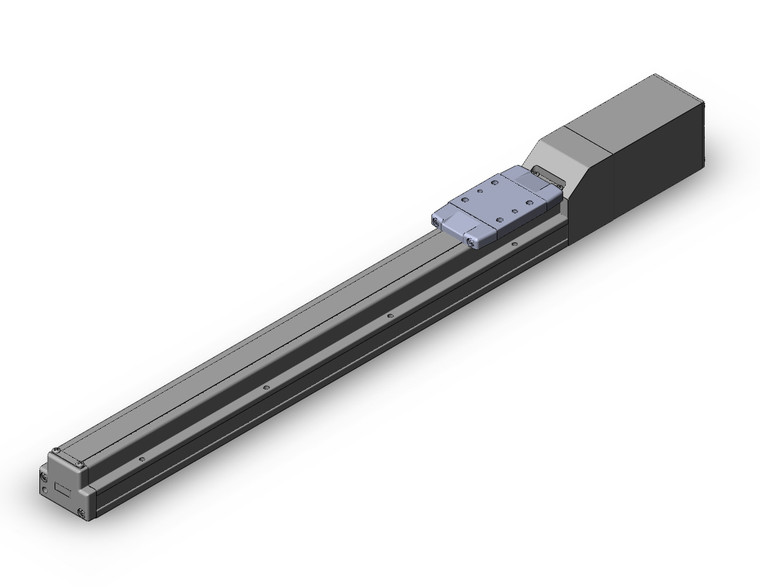

SMC LEFS16A-300-S3AP3D LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

The SMC LEFS16A-300-S3AP3D is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive step motor with a servo motor operating at 24 VDC, ensuring reliable and smooth motion control. It boasts a maximum workload capacity of 65 kg and offers exceptional positioning repeatability of ±0.02 mm, making it ideal for applications requiring high precision. The actuator is compliant with ISO Class 4 (ISO14644-1) clean specifications, ensuring suitability for cleanroom environments, particularly the 11-LEFS model. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. For those seeking enhanced performance, the LEFS Series also offers an AC Servo Motor option with high output capabilities of 100/200/400 W. This variant provides improved high-speed transfer ability and high acceleration/deceleration rates of up to 20000mm/S². It features a pulse input type and comes equipped with an internal absolute encoder for the LECSB/C/S models, delivering superior positioning repeatability of ±0.01 mm for high precision applications. The actuator is compatible with various drivers, including LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and some discontinued models like LECSB-S, LECSC-S, and LECSS-S. Whether for industrial automation, robotics, or other demanding applications, the SMC LEFS16A-300-S3AP3D offers a robust and versatile solution for your motion control needs.
