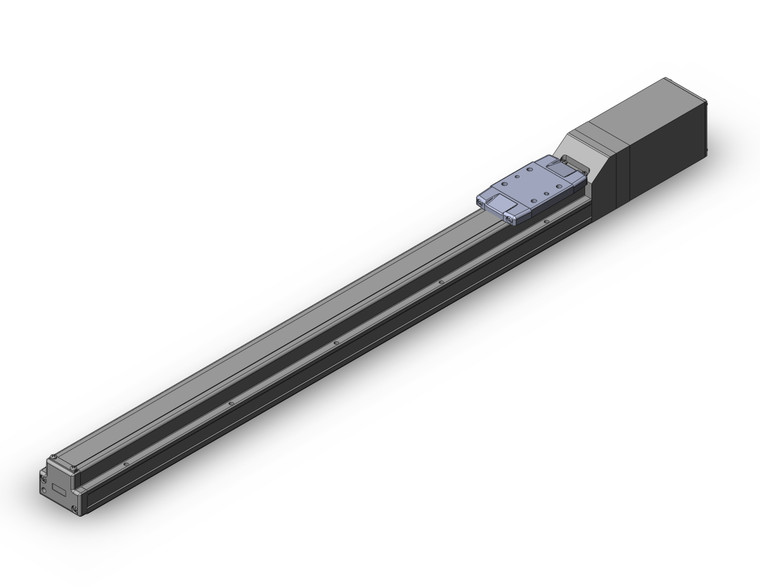

SMC LEFS16A-400-S1AN1D LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)
SMC
$1,085.00
The SMC LEFS16A-400-S1AN1D is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive and is powered by a step motor (Servo 24 VDC) or a servo motor (24 VDC), making it versatile for various applications. It boasts a maximum workload capacity of 65 kg and offers exceptional positioning repeatability of ±0.02 mm, ensuring accurate and reliable operation.
This actuator is compliant with ISO Class 4 (ISO14644-1) clean specifications, making it suitable for cleanroom environments (11-LEFS only). It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued.
The LEFS Series also includes an AC Servo Motor option, offering high output power of 100/200/400 W and enhanced high-speed transfer capabilities. It supports high acceleration and deceleration rates of up to 20000mm/S², making it ideal for dynamic applications. The pulse input type and internal absolute encoder (for the LECSB/C/S) further enhance its precision, with a high precision type positioning repeatability of ±0.01 mm.
Compatible drivers for the LEFS Series include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and some discontinued models like LECSB-S, LECSC-S, and LECSS-S. This actuator is engineered for those who demand high performance and reliability in their automation systems.
- Accuracy:
- Basic
- Size:
- 16
- Motor Mounting Position:
- In-line
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16: 10 mm, Size25: 12 mm, Size32: 16 mm, Size40: 20 mm
- Stroke:
- Stroke 400 mm
- Motor Option:
- Without Lock
- Auto Switch Mounting Bracket:
- None
- Grease Application (Seal Band Part):
- With
- Positioning Pin Hole:
- Housing B Bottom
- Actuator Cable Type:
- Standard Cable
- Actuator Cable Length:
- 1.5 m
- Controller Type:
- LECPA Pulse Input Type NPN
- I/O Cable Length, Communication Plug:
- 1.5 m
- Controller Mounting:
- DIN Rail Mounting
