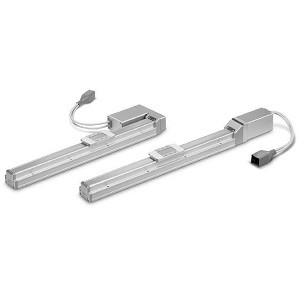

SMC LEFS16EA-150 LEFS16E Series Electric Actuator Battery-less Absolute Encoder Type Slider Type/Ball Screw Drive Step Motor 24 VDC

SMC LEFS16EA-150 LEFS16E Series Electric Actuator Battery-less Absolute Encoder Type Slider Type/Ball Screw Drive Step Motor 24 VDC

SMC
SKU:
LEFS16EA-150
Availability:
Factory Stock
$755.00
Condition:
New
Current Stock:
Description

LEFS16E Series Electric Actuator Battery-less Absolute Encoder Type Slider Type/Ball Screw Drive Step Motor 24 VDC

  • Restart from the last stop position is possible after recovery of the power supply;
  • Easy operation restart after recovery of the power supply;
  • Does not require the use of batteries. Reduced maintenance; Batteries are not required to store the position information. Therefore, there is no need to store spare batteries or to recycle and replace dead batteries;
  • Size 16 has been added. [New]; Slider Type LEF, Rod Type LEY(G)
    • Additional Information
    Accuracy:
    Basic Type
    Size:
    16
    Motor Mounting Position:
    In-line
    Motor Type:
    Battery-less Absolute (Step Motor 24 VDC)
    Lead:
    10 mm
    Stroke:
    Stroke 150 mm
    Motor Option:
    Without Lock
    Grease Application (Seal Band Part):
    With
    Positioning Pin Hole:
    Housing B Bottom
    Actuator Cable Type/Length:
    Without Cable
    Communication Protocol Input/Output:
    Without Controller
    For Single Axis:
    Without Controller
    Mounting:
    Without Controller
    Communication Plug Connector I/O Cable:
    Without Controller Or Without Accessory
