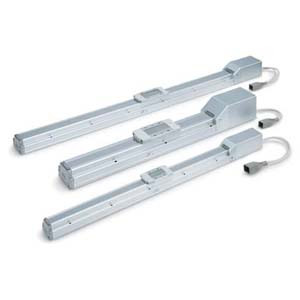

SMC LEFS25A-200-R5 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

The SMC LEFS25A-200-R5 is a versatile electric actuator designed for precision and efficiency. Featuring a slider type ball screw drive, this actuator is powered by a step motor (Servo 24 VDC) or a servo motor (24 VDC), making it suitable for a wide range of applications. It boasts a maximum work load capacity of 65 kg and offers exceptional positioning repeatability of ±0.02 mm, ensuring accurate and reliable performance. This actuator complies with ISO Class 4 clean specifications (ISO14644-1) for the 11-LEFS model, making it ideal for environments requiring stringent cleanliness standards. It is compatible with a variety of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. The LEFS series also includes an AC servo motor option, offering high output power (100/200/400 W) and improved high-speed transfer capabilities. With high acceleration and deceleration rates of up to 20000mm/S², this actuator is designed for rapid and efficient operation. The high precision type provides enhanced positioning repeatability of ±0.01 mm. For those requiring pulse input types, the actuator comes equipped with an internal absolute encoder, compatible with drivers such as LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY. Note that some driver models, including LECSB-S, LECSC-S, and LECSS-S, have been discontinued. The SMC LEFS25A-200-R5 is a robust and reliable choice for demanding industrial applications.
