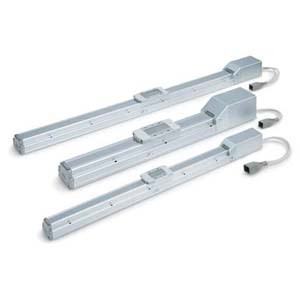

SMC LEFS25AB-100-R56P3D Ball Screw Drive Slider Actuator

SMC LEFS25AB-100-R56P3D LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

SMC
SKU:
LEFS25AB-100-R56P3D
Availability:
Factory Stock
$1,415.00
Condition:
New
Current Stock:
Description
The SMC LEFS25AB-100-R56P3D is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type ball screw drive step motor operates with a servo motor at 24 VDC, ensuring reliable and consistent performance. It boasts a maximum workload capacity of 65 kg and offers exceptional positioning repeatability of ±0.02 mm, making it ideal for applications requiring high precision. This actuator is compliant with ISO Class 4 (ISO14644-1) clean specifications, specifically for the 11-LEFS model, ensuring it meets stringent cleanliness standards. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. The LEFS Series also features an AC Servo Motor option, offering high output power of 100/200/400 W, improved high-speed transfer capabilities, and impressive acceleration/deceleration rates of up to 20000mm/S². The pulse input type and internal absolute encoder (for the LECSB/C/S) enhance its precision, with a high precision type offering positioning repeatability of ±0.01 mm. Compatible drivers for this series include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and several discontinued models. Whether for industrial automation or precision engineering, the SMC LEFS25AB-100-R56P3D is engineered to deliver superior performance and reliability.
Additional Information
Accuracy:
Basic
Size:
25
Motor Mounting Position:
In-line
Motor Type:
Servo motor (24 VDC)
Lead:
Size16: 5 mm, Size25: 6 mm, Size32: 8 mm, Size40: 10 mm
Stroke:
Stroke 100 mm
Motor Option:
Without Lock
Auto Switch Mounting Bracket:
None
Grease Application (Seal Band Part):
With
Positioning Pin Hole:
Housing B Bottom
Actuator Cable Type:
Robotic Cable (Flexible Cable)
Actuator Cable Length:
5 m
Controller Type:
LECA6 Step Fata Input Type PNP (LECP6 Manufacture discontinued)
I/O Cable Length, Communication Plug:
3 m
Controller Mounting:
DIN Rail Mounting
