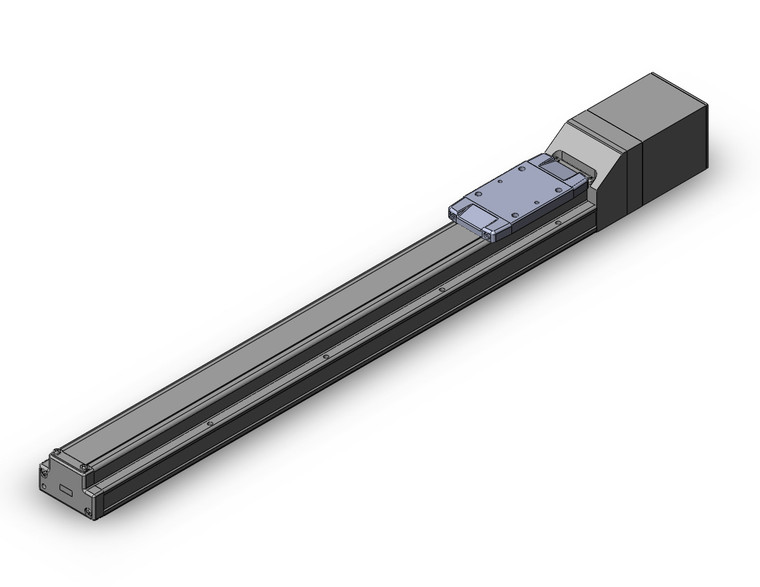

SMC LEFS25B-400-S3C918 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC) Applicable To The JXC Series
SMC
$1,435.00
The SMC LEFS25B-400-S3C918 is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive and a step motor with a servo of 24 VDC, making it ideal for applications requiring accurate positioning and smooth operation. It is compatible with the JXC Series controllers, ensuring seamless integration into your existing systems.
Key features include a maximum work load capacity of 65 kg and exceptional positioning repeatability of ±0.02 mm, ensuring reliable and consistent performance. The actuator meets ISO Class 4 clean specifications (ISO14644-1) for environments requiring stringent cleanliness standards, applicable to the 11-LEFS model.
The LEFS Series also offers a high output motor option with power ratings of 100/200/400 W, enhancing high-speed transfer capabilities and supporting high acceleration and deceleration rates of up to 20000 mm/s². For applications demanding even greater precision, the high precision type provides positioning repeatability of ±0.01 mm.
Compatible with a wide range of controllers and drivers, including JXC51, JXC61, JXCE1, and more, the LEFS25B-400-S3C918 ensures flexibility and adaptability for various industrial applications. Whether you need pulse input type control or an internal absolute encoder for the LECSB/C/S models, this actuator delivers superior performance and reliability.
- Accuracy:
- Basic Style
- Size:
- 25
- Motor Mounting Position:
- In-line
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16:5mm,Size25:6mm,Size32:8mm,Size40:10mm
- Stroke:
- Stroke 400 mm
- Motor Option:
- Without Option
- Auto Switch Mounting Bracket:
- None
- Grease Application (Seal Band Part):
- With
- Positioning Pin Hole:
- Housing B Bottom
- Actuator Cable Type/Length:
- Standard Cable 3 m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- DIN Rail Mounting
- Communication Plug Connector I/O Cable:
- Without Controller Or Without Plug Connector
