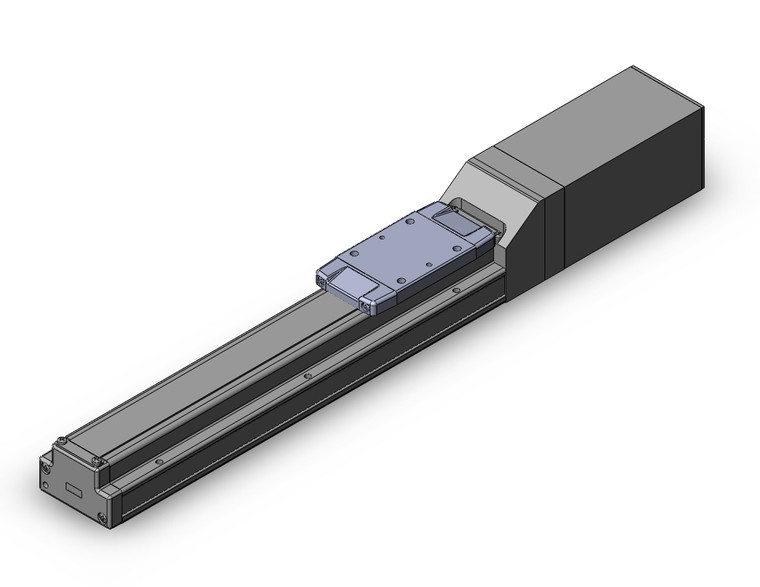

SMC LEFS25H-200B-R3AN3 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)
SMC
$1,535.00
The SMC LEFS25H-200B-R3AN3 is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive and is powered by a step motor (servo 24 VDC) or a servo motor (24 VDC), making it versatile for various applications. It boasts a maximum work load capacity of 65 kg and offers exceptional positioning repeatability of ±0.02 mm, ensuring accurate and reliable operation.
This actuator is compliant with ISO Class 4 (ISO14644-1) clean specifications, making it suitable for environments requiring stringent cleanliness standards. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued.
The LEFS Series also includes an AC servo motor option, offering high output power (100/200/400 W) and enhanced high-speed transfer capabilities. It supports high acceleration and deceleration rates of up to 20000 mm/s², making it ideal for dynamic applications. The actuator is equipped with an internal absolute encoder for precise positioning, with a high precision type offering repeatability of ±0.01 mm.
Compatible drivers for the LEFS Series include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, with some models also discontinued. This actuator is engineered for high performance and reliability, making it a valuable component in automation and industrial applications.
- Accuracy:
- Basic
- Size:
- 25
- Motor Mounting Position:
- In-line
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size25: 20 mm, Size32: 24 mm, Size40: 30 mm
- Stroke:
- Stroke 200 mm
- Motor Option:
- With Lock
- Auto Switch Mounting Bracket:
- None
- Grease Application (Seal Band Part):
- With
- Positioning Pin Hole:
- Housing B Bottom
- Actuator Cable Type:
- Robotic Cable (Flexible Cable)
- Actuator Cable Length:
- 3 m
- Controller Type:
- LECPA Pulse Input Type NPN
- I/O Cable Length, Communication Plug:
- 3 m
- Controller Mounting:
- Screw Mounting
