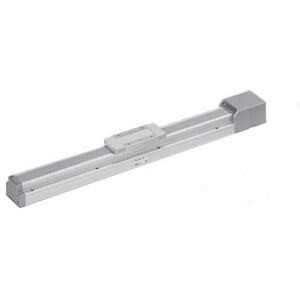

SMC LEFS25LNZB-350 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Motorless Type
SMC
$1,015.00
SMC LEFS25LNZB-350 - LEFS Series Electric Slider, 25mm, 350mm Stroke
The SMC LEFS25LNZB-350 is an electric slide table actuator with 25mm frame and 350mm stroke. Compact slider with integrated linear guide for precise positioning.
Key Features & Specifications
- Electric slide table - programmable positioning with high repeatability
- Integrated linear guide - precision ball bearing slide for smooth travel
- Step or servo motor options - matched to application requirements
- Compact low-profile body - minimized height for constrained layouts
- Controller compatible - SMC LECP/JXC series
- Multi-axis ready - stackable for XY and XYZ configurations
- Size: 25mm | Stroke: 350mm | Electric Slider
Typical Applications
Designed for precision positioning, automated inspection, dispensing, and multi-axis transfer systems requiring compact electric actuation.
Manufactured by SMC Corporation.
- Accuracy:
- Basic
- Size:
- 25
- Motor Mounting Position:
- Left Side Parallel
- Mounting Type:
- Mounting Type Z
- Lead:
- Size25: 6 mm, Size32: 8 mm, Size40: 10 mm
- Stroke:
- Stroke 350 mm
- Auto Switch Mounting Bracket:
- None
- Grease Application (Seal Band Part):
- With
- Positioning Pin Hole:
- Housing B Bottom
- Made To Order:
- Standard
