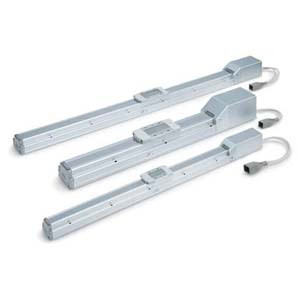

SMC LEFS25RAA-100B-R1 Ball Screw Drive Actuator

SMC LEFS25RAA-100B-R1 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

SMC
SKU:
LEFS25RAA-100B-R1
Availability:
Factory Stock
$1,240.00
Condition:
New
Current Stock:
Description
The SMC LEFS25RAA-100B-R1 is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive step motor and a servo motor, both operating at 24 VDC. It is engineered to handle a maximum workload of 65 kg with exceptional positioning repeatability of ±0.02 mm, ensuring precise and reliable operations. This actuator is compliant with ISO Class 4 (ISO14644-1) clean specifications, making it suitable for environments requiring stringent cleanliness standards. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. The LEFS Series also offers an AC Servo Motor option with high output capabilities of 100/200/400 W, enhancing high-speed transfer abilities and supporting high acceleration/deceleration rates of up to 20000mm/S². This version includes a pulse input type and an internal absolute encoder for the LECSB/C/S models, providing a positioning repeatability of ±0.01 mm for high precision applications. Compatible drivers for the AC Servo Motor include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, with some models also being discontinued. The SMC LEFS25RAA-100B-R1 is an ideal choice for applications demanding high precision, speed, and cleanliness.
Additional Information
Accuracy:
Basic
Size:
25
Motor Mounting Position:
Right Side Parallel
Motor Type:
Servo motor (24 VDC)
Lead:
Size16: 10 mm, Size25: 12 mm, Size32: 16 mm, Size40: 20 mm
Stroke:
Stroke 100 mm
Motor Option:
With Lock
Auto Switch Mounting Bracket:
None
Grease Application (Seal Band Part):
With
Positioning Pin Hole:
Housing B Bottom
Actuator Cable Type:
Robotic Cable (Flexible Cable)
Actuator Cable Length:
1.5 m
Controller Type:
Without Controller
I/O Cable Length, Communication Plug:
Without Cable, Without Communication Plug Connector
Controller Mounting:
Screw Mounting
