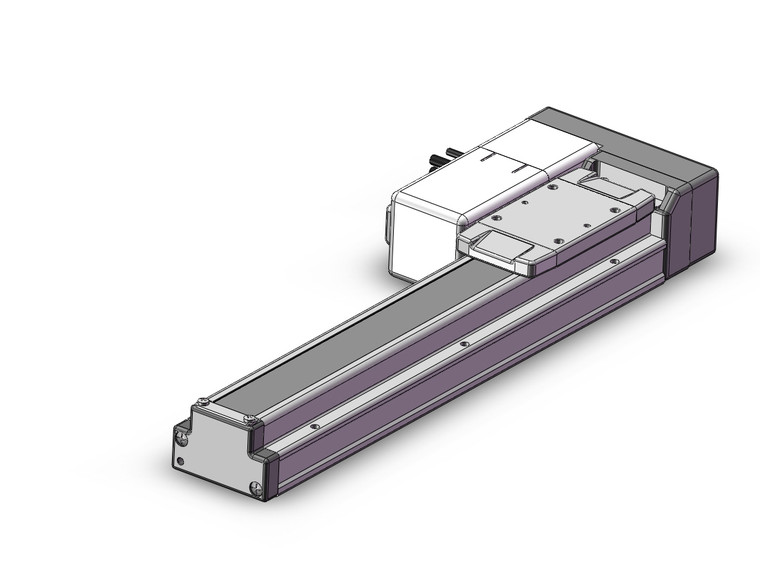

SMC LEFS25RAA-200B-R1 Ball Screw Drive Actuator

SMC LEFS25RAA-200B-R1 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

SMC
SKU:
LEFS25RAA-200B-R1
Availability:
Factory Stock
$1,270.00
Condition:
New
Current Stock:
Description
The SMC LEFS25RAA-200B-R1 is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency in industrial applications. This slider type actuator features a ball screw drive and is powered by a step motor (servo 24 VDC) or a servo motor (24 VDC), offering versatility in operation. It supports a maximum workload of 65 kg and boasts a positioning repeatability of ±0.02 mm, ensuring accurate and reliable performance. Engineered to meet clean specifications, it complies with ISO Class 4 (ISO14644-1) standards, making it suitable for environments requiring stringent cleanliness. The actuator is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. For applications requiring high output, the LEFS Series AC Servo Motor variant offers motors with 100/200/400 W power, enhanced high-speed transfer capabilities, and high acceleration/deceleration rates of up to 20000mm/S². It features a pulse input type and includes an internal absolute encoder for the LECSB/C/S models, providing a positioning repeatability of ±0.01 mm for high precision tasks. The actuator is also compatible with various drivers, including LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, with some models no longer in production. This robust and adaptable actuator is ideal for industries seeking reliable and precise motion control solutions.
Additional Information
Accuracy:
Basic
Size:
25
Motor Mounting Position:
Right Side Parallel
Motor Type:
Servo motor (24 VDC)
Lead:
Size16: 10 mm, Size25: 12 mm, Size32: 16 mm, Size40: 20 mm
Stroke:
Stroke 200 mm
Motor Option:
With Lock
Auto Switch Mounting Bracket:
None
Grease Application (Seal Band Part):
With
Positioning Pin Hole:
Housing B Bottom
Actuator Cable Type:
Robotic Cable (Flexible Cable)
Actuator Cable Length:
1.5 m
Controller Type:
Without Controller
I/O Cable Length, Communication Plug:
Without Cable, Without Communication Plug Connector
Controller Mounting:
Screw Mounting
